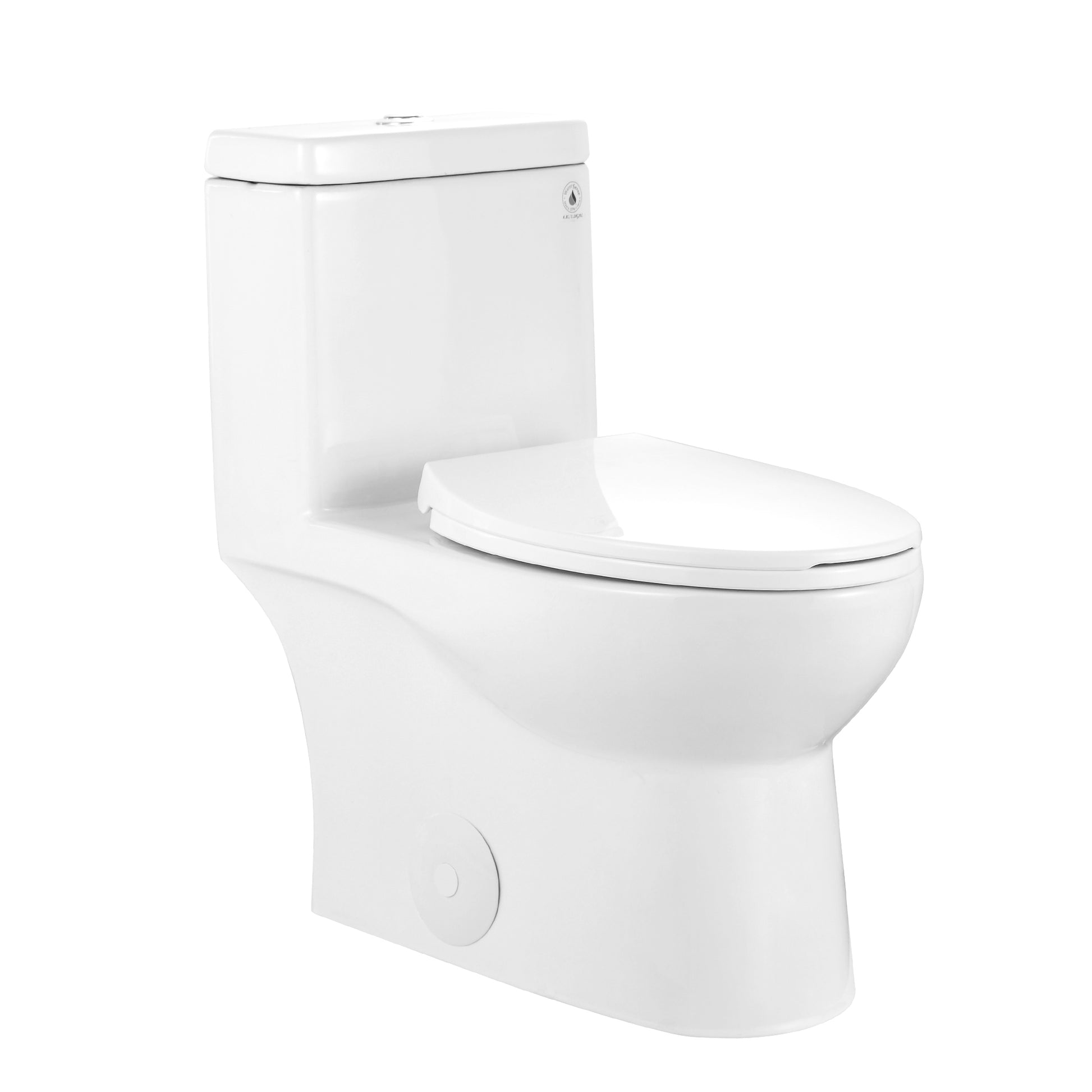

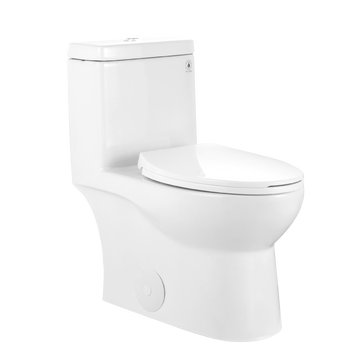

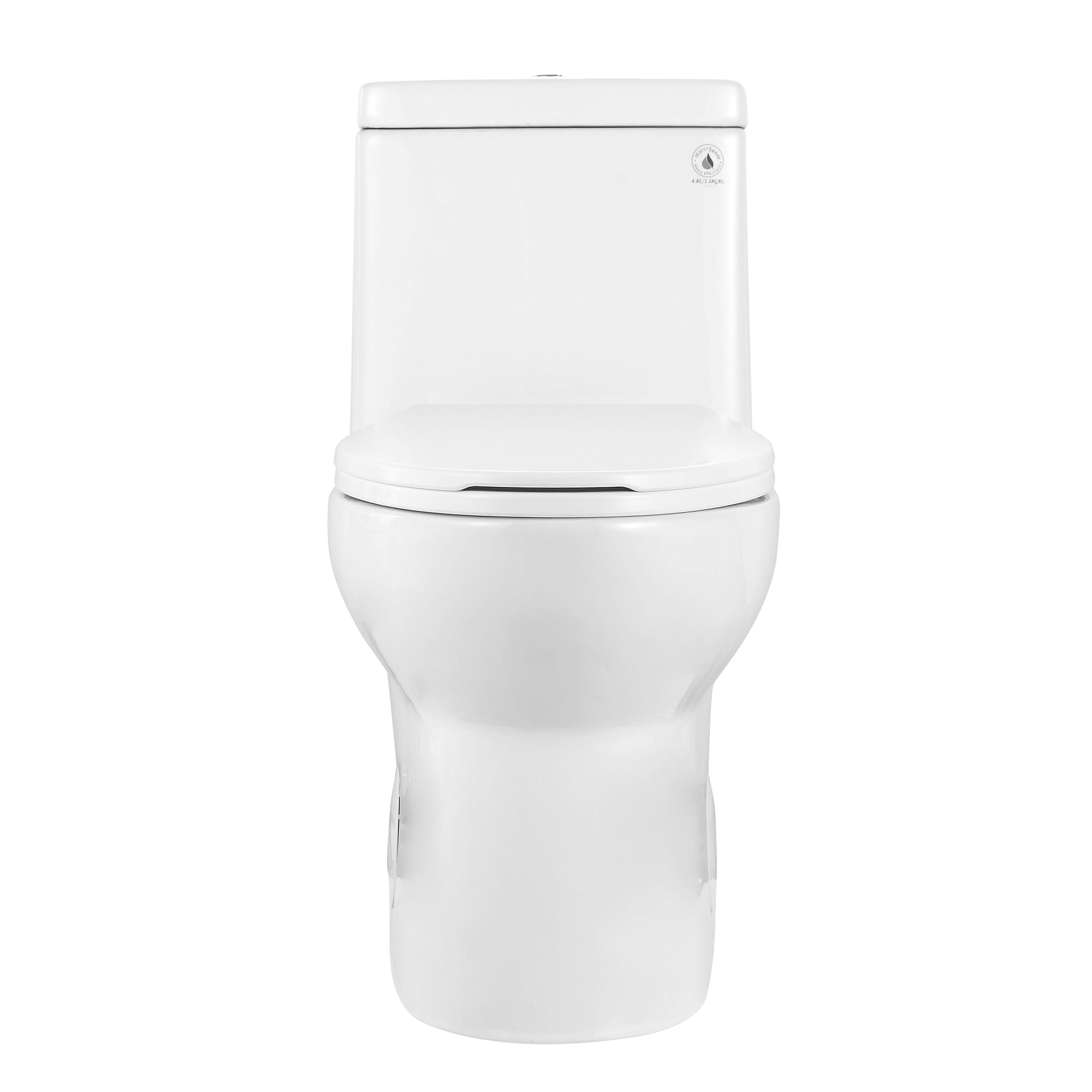

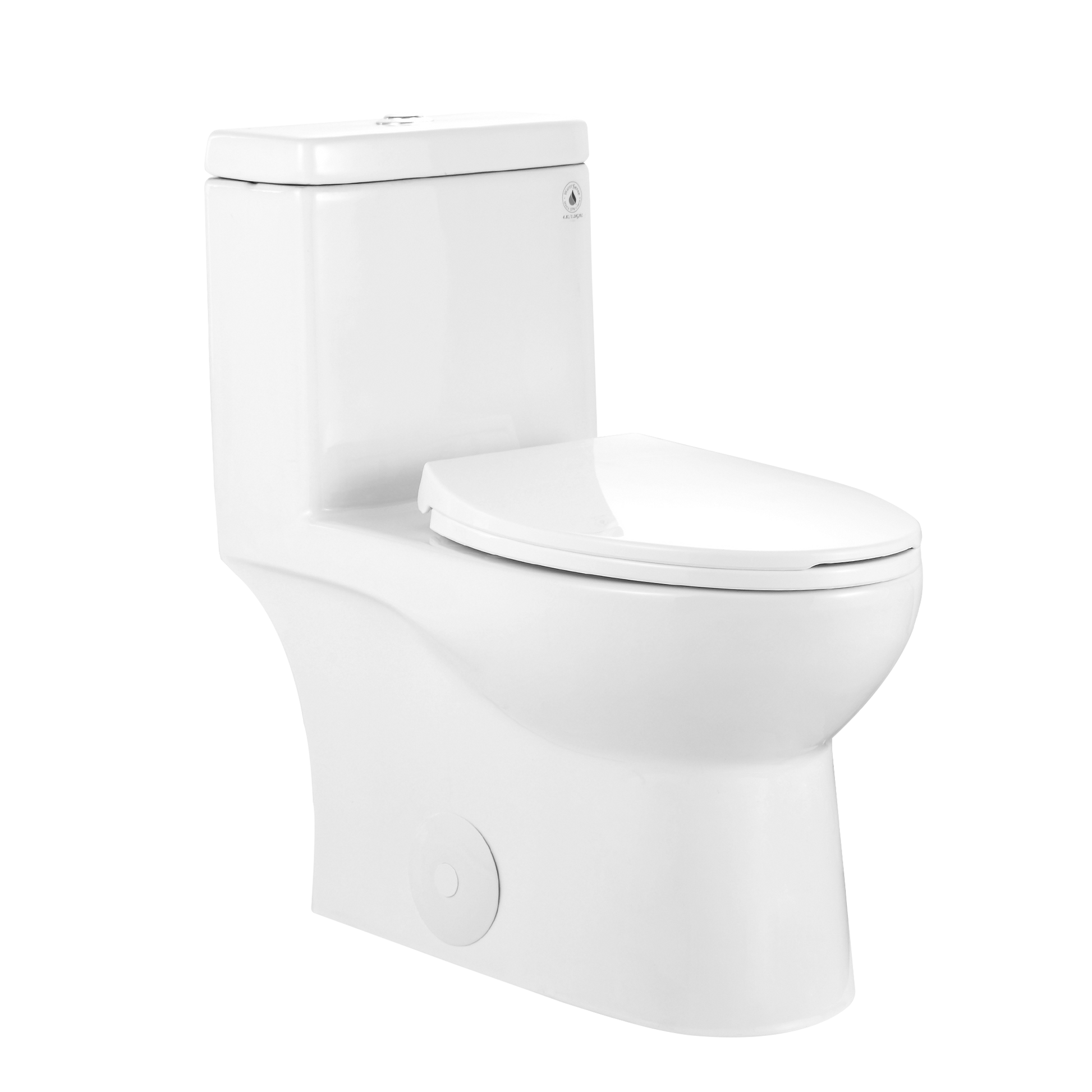

Ally 10" Rough-in Dual-Flush Elongated One-Piece Toilet with Glazed Surface Modern Toilet with Comfort Seat Height (Seat Included)

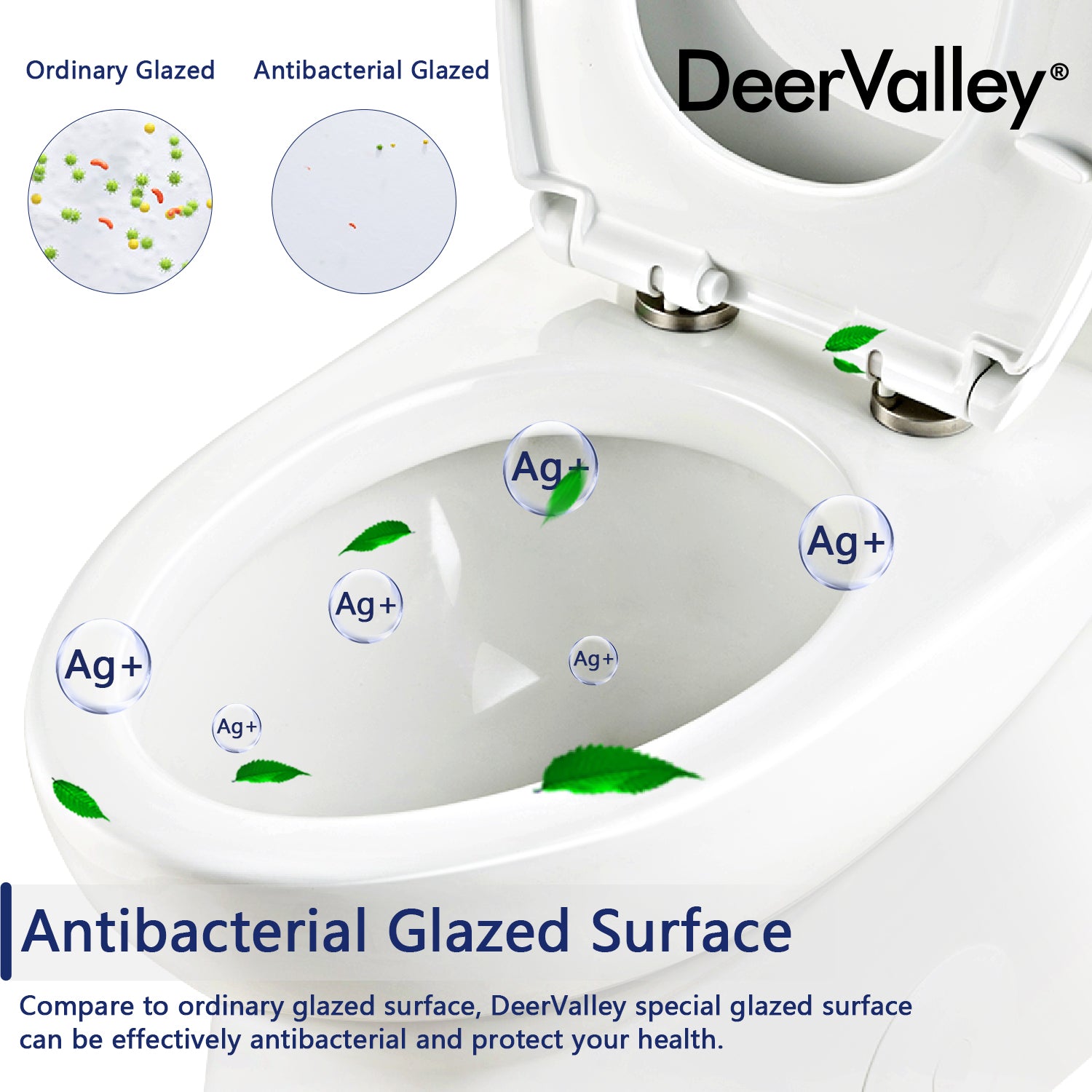

This 10" rough-in toilet with a glazed surface is designed in a modern and practical style. The toilet seat of this elongated toilet can be closed silently, providing you with a silent bathroom environment and making you feel more relaxed especially at night. The dual-flush feature of this one piece toilet is ideal for water conservation and let you feels no worry after every use. With fully skirted surface, this toilet is really easy to clean and can save your time. Please note that the toilet seat and wax rings are included in the package to facilitate installation and use, no need for extra purchase. We devoting ourselves to any detail to make you feel convenient at any time, and we wish you can enjoy your bath time!
Free shipping in North America. We also offer a 1-year warranty and 30-day returns.
- Toilet Seat, Toilet installation package, Toilet tank side lid, Installation instruction
Ally 10" Rough-in Dual-Flush Elongated One-Piece Toilet with Glazed Surface Modern Toilet with Comfort Seat Height (Seat Included)
Why You Need the
DeerValley®+Toilet?

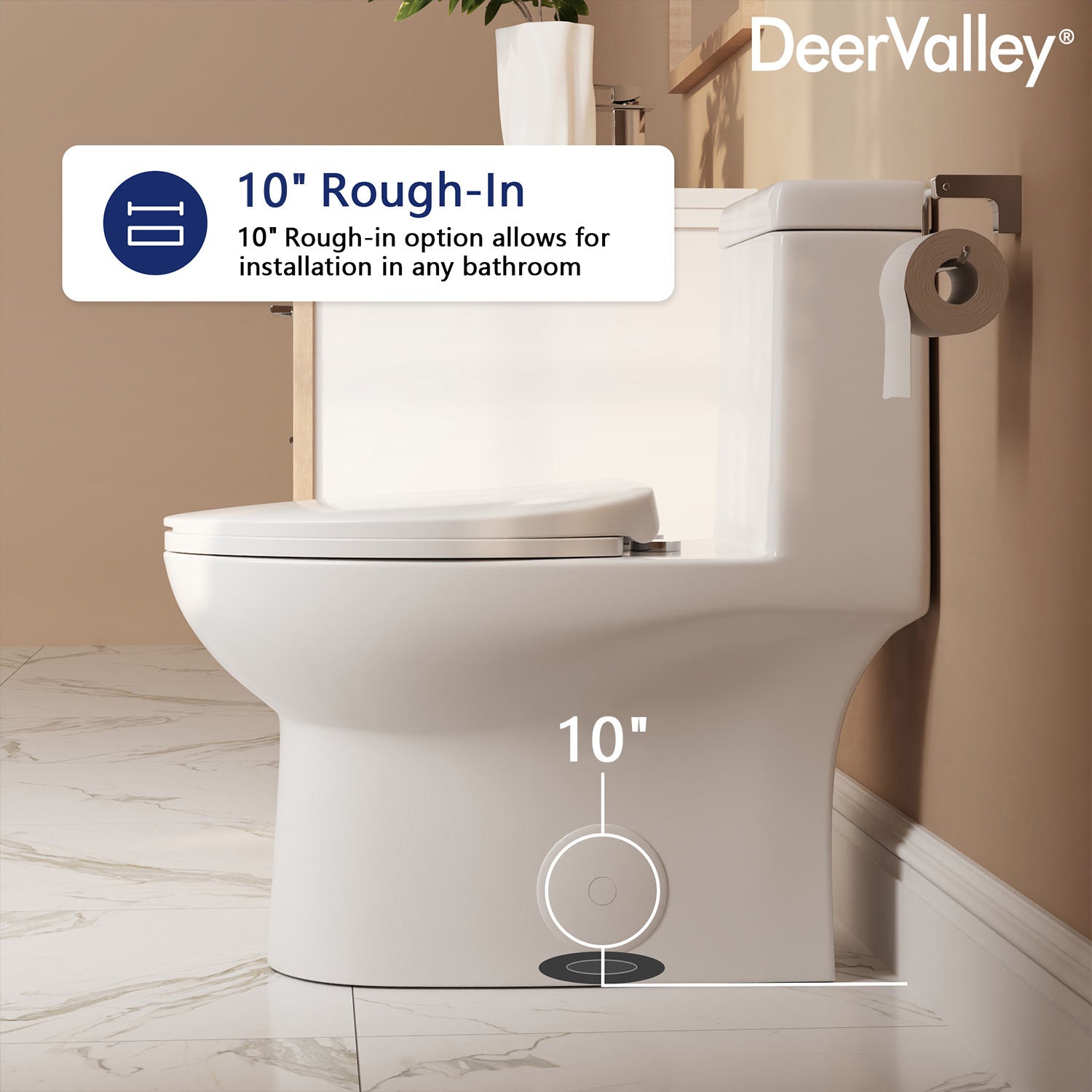

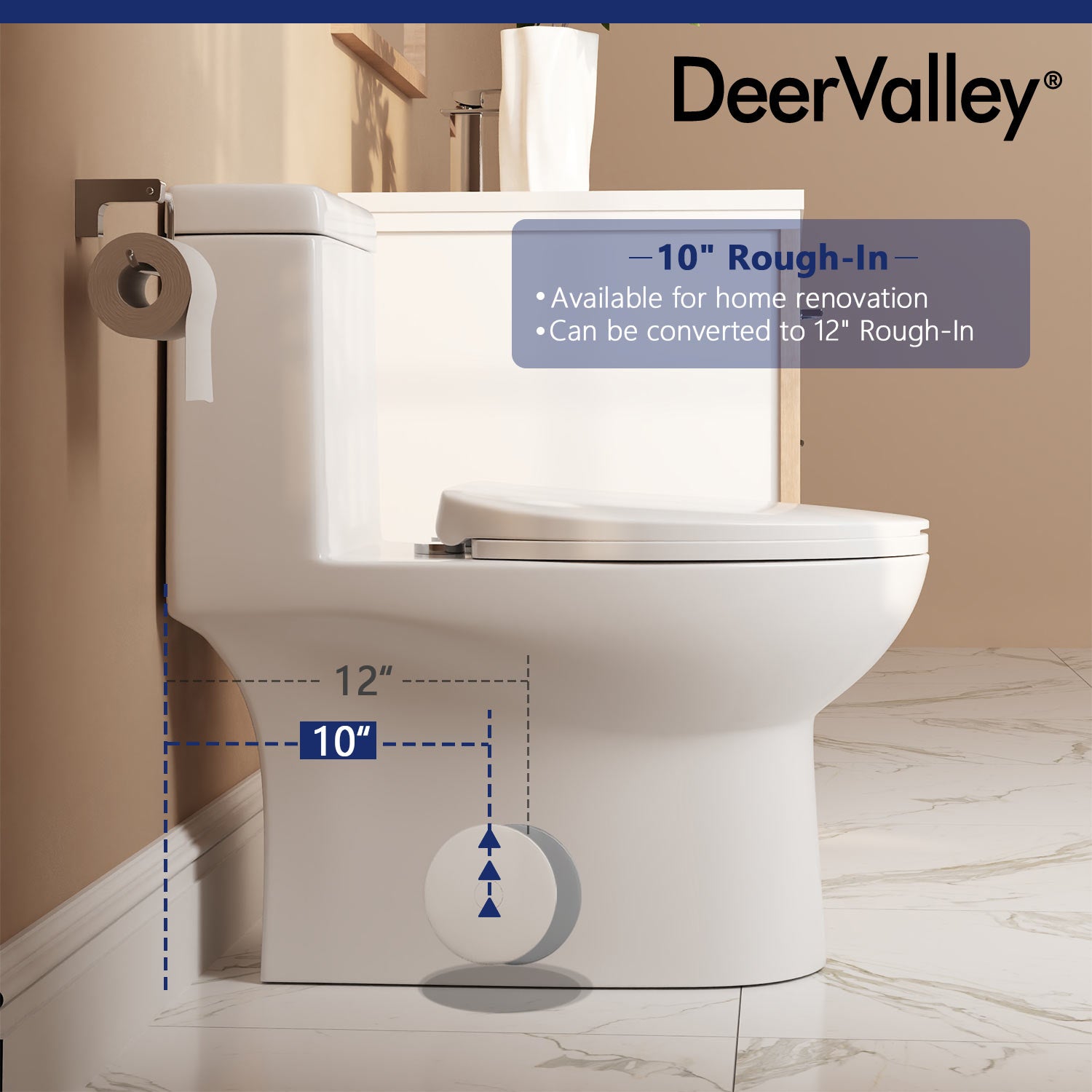

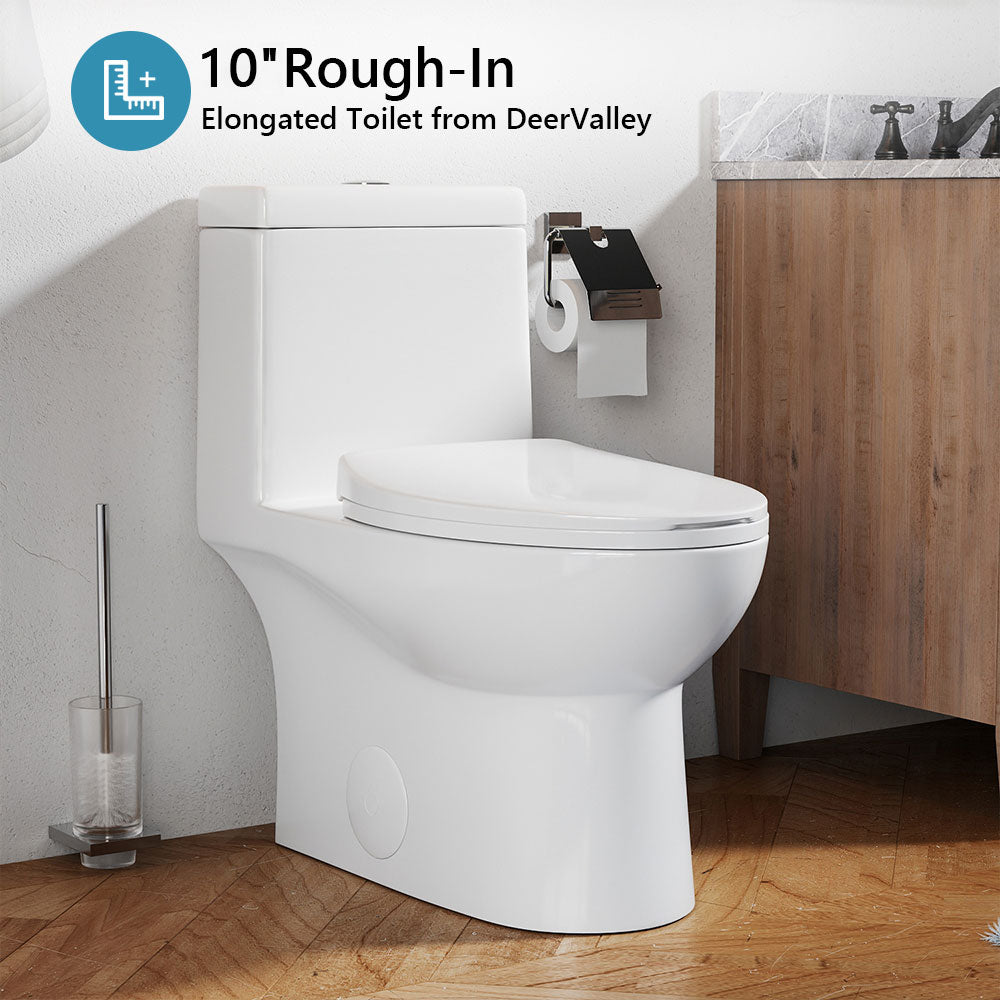

- 10" Rough-In: Designed for bathrooms with a 10-inch rough-in, this model fits seamlessly into compact spaces without requiring renovations to existing plumbing. A 12-inch rough-in version is also available for greater flexibility.
- Highly Efficient Dual-Flush: 1.6 GPF for full flush (adjustable with floater) /1.1 GPF for half flush (adjustable on flush cistern) with a powerful flush system. It has two flush options and both are water-saving features.

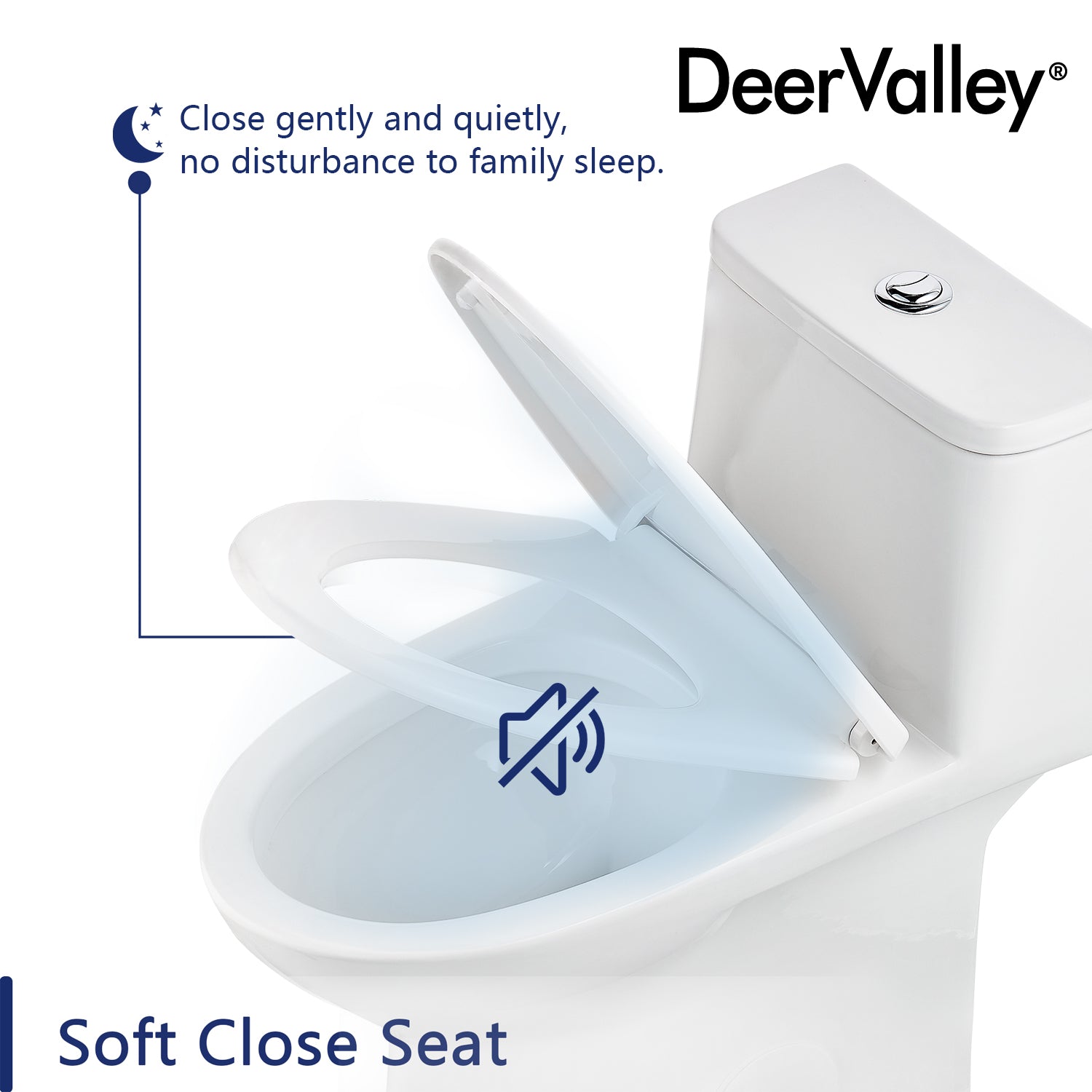

- Suprior Quality Seat: With soft closing and push button removable design, this toilet seat makes easy to get off and will never disturb your family.

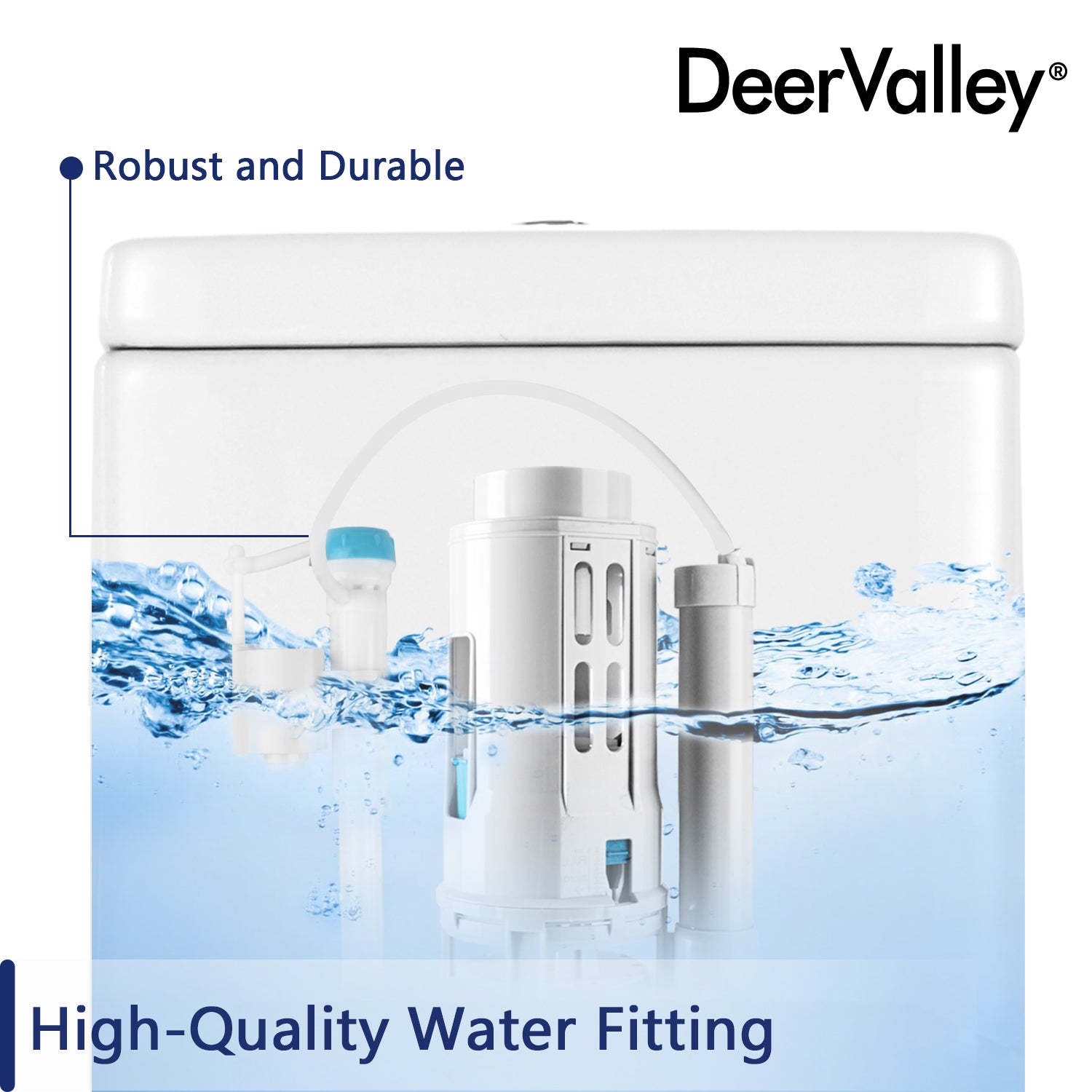

- All-in-one packge: Package Includes toilet, pre-installed soft closing toilet seat, pre-installed water fitting, high quality wax ring , floor bolts , and installation instruction.
Certifications

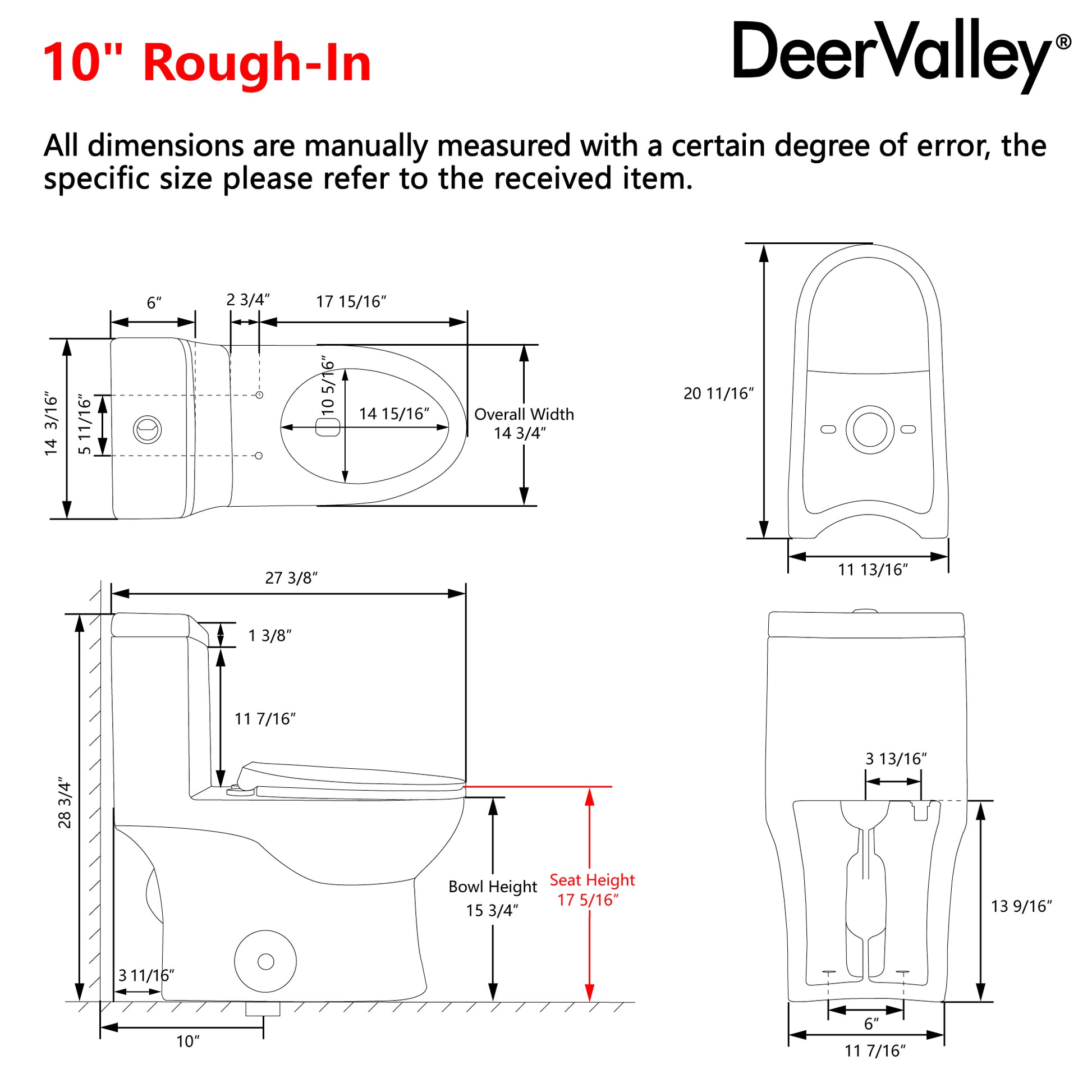

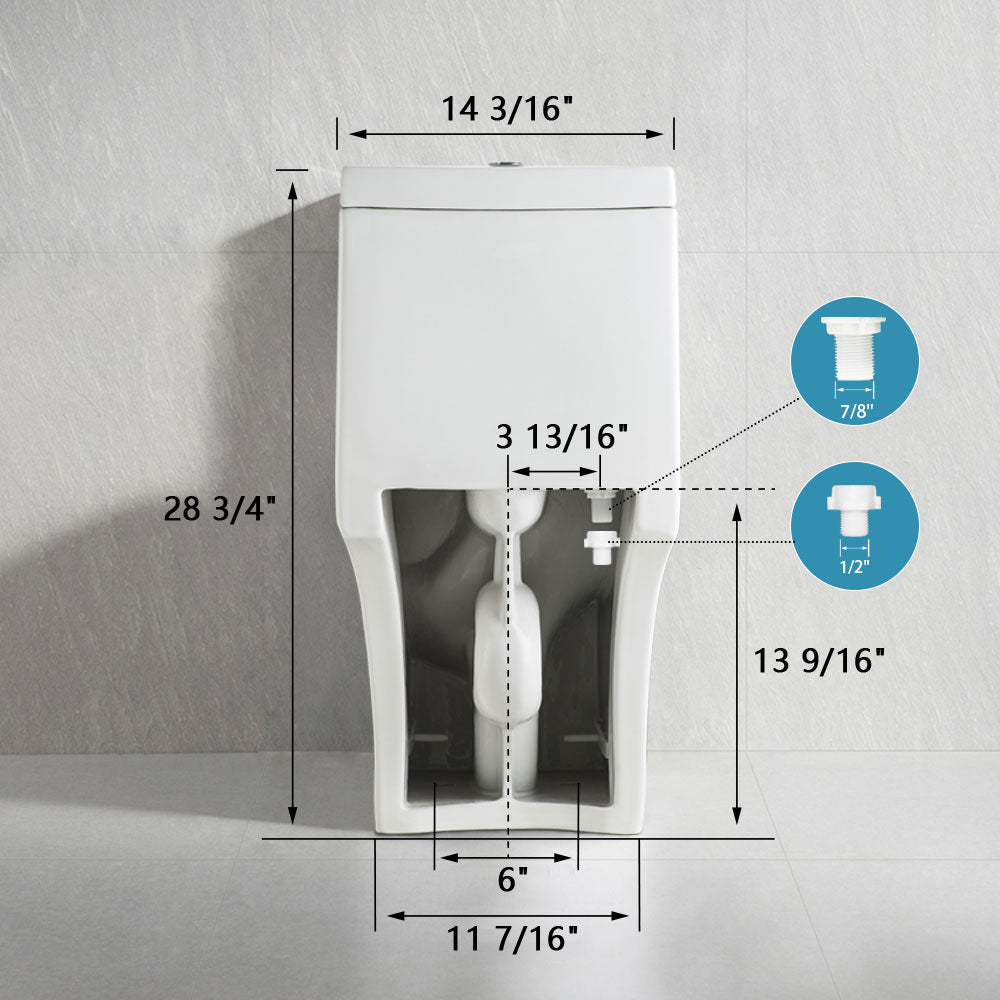

Weights & Dimensions（Swipe it.➡️ ）
| SKU | DV-1F52816R |
| Overall | 27.36" L X 14.76" W X 28.74" H |
| Rough In Size | 10" |

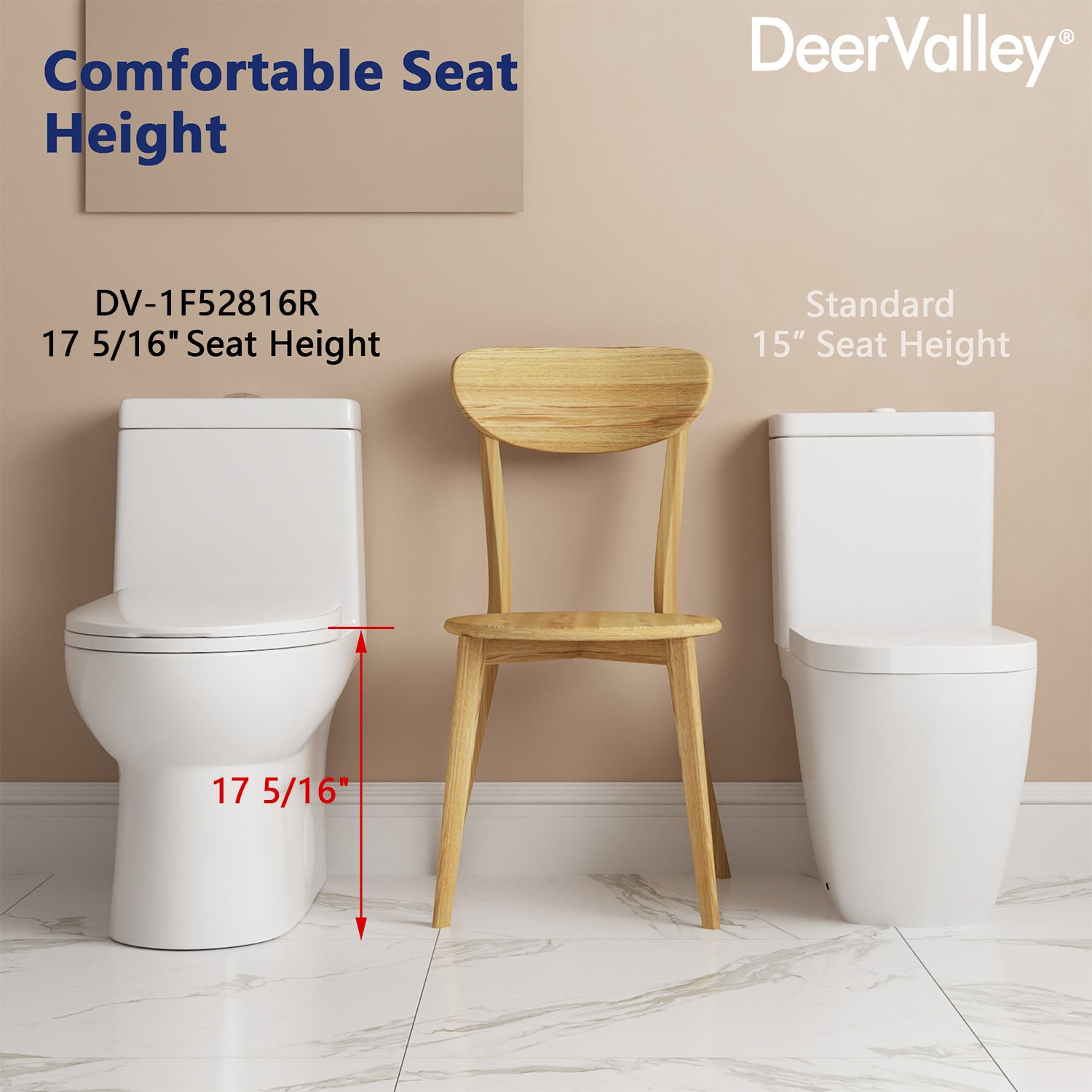

| Toilet Seat Height - Top to Bottom | 17.32" |
| Bowl Height - Top to Bottom | 15.75" |
| Tank | 14.17" L X 5.91" W X 11.57" H |
| Tank Lid | 14.17" L X 5.98" W X 1.38" H |
| Bolts Spread Distance | 5.71" |
| Distance from the Seat Installation Hole to the Tank | 2.76" |
| Distance from the Back of the Toilet to the Wall | 3.74" |
| Toilet Installation Hole Distance | 5.98" |
| Height from the Bottom of the Water Tank to the Ground | 13.58" |
| Distance Between the Center of Adapter and the Center of Trapway | 3.78" |
| Trapway Diameter(Inside) | 2.36" |
| Toilet Seat | 1.97 Back/1.38 Front " H X 14.17" W X 18.11" L |
| Toilet Seat Inside Ring | 7.87" W X 12.01" L |
| Bowl | 14.96" L X 10.24" W X 15.75" H |
| Toilet Base Dimension | 20.67" L X 11.73" W |
| Overall Product Weight | 117 lb |
| Flush Volume | 1.1/1.6 GPF |
What is included in the package?
- Toilet Seat, Toilet installation package, Toilet tank side lid, Installation instruction
- Fill Valve: DV-F816V01
- Toilet Seat for DV-1F52816: DV-F068S11/DV-F068S21
- Toilet Seat for DV-1F52816B: DV-F816BS11
- Waxring and Bolts Kit: DV-F008P11
- Flush Button for DV-1F52816: DV-F812V31
- Flush Button for DV-1F52816B: DV-F816BV31
- Tank Lid for DV-1F52816: DV-F816T11
- Tank Lid for DV-1F52816B: DV-F816BT11
- Side Bolt Cover for DV-1F52816: DV-F026P21
- Side Bolt Cover for DV-1F52816B: DV-F026BP21
- Toilet Seat Installation Kit for DV-1F52816: DV-F816S01
- Toilet Seat Installation Kit for DV-1F52816B: DV-F816BS01
