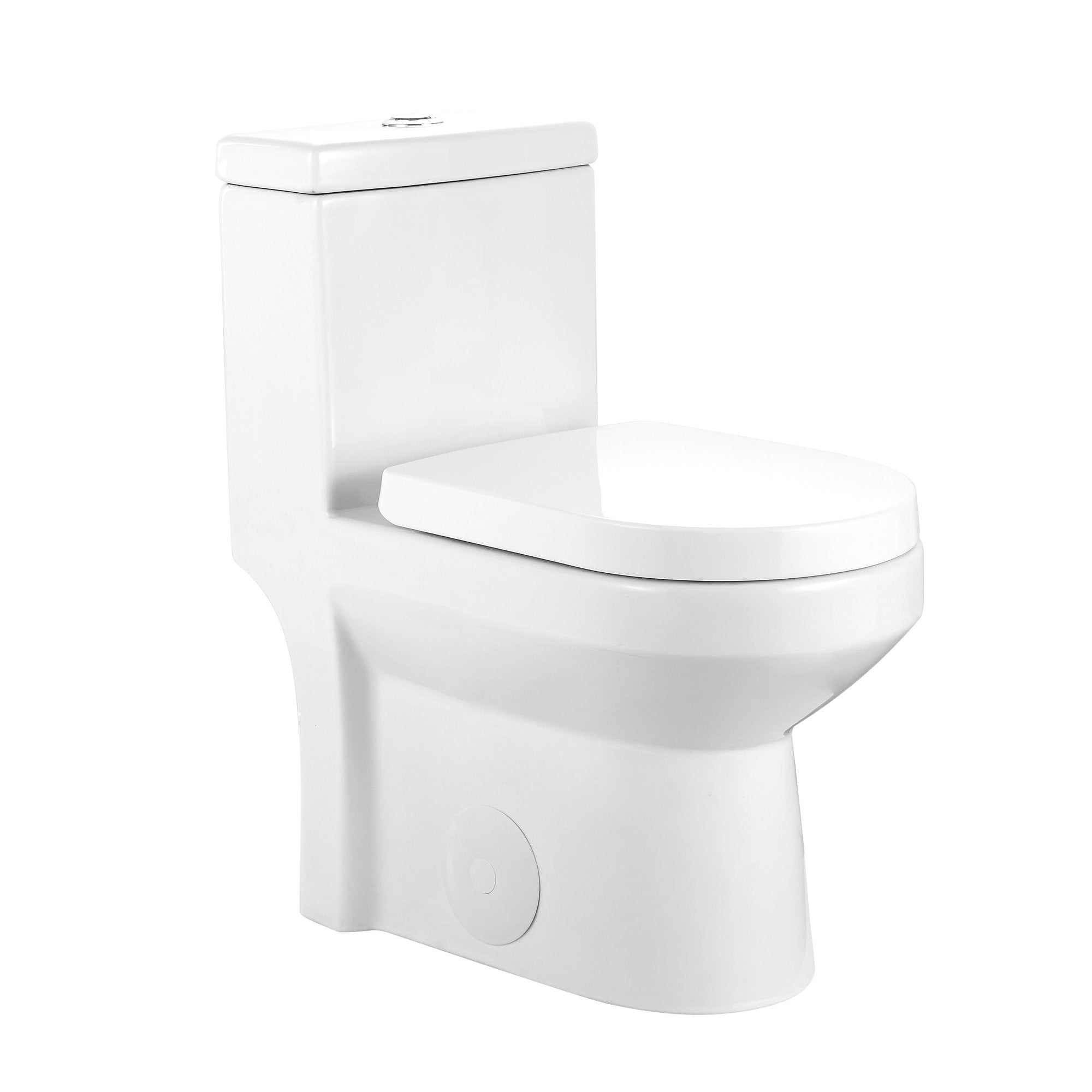

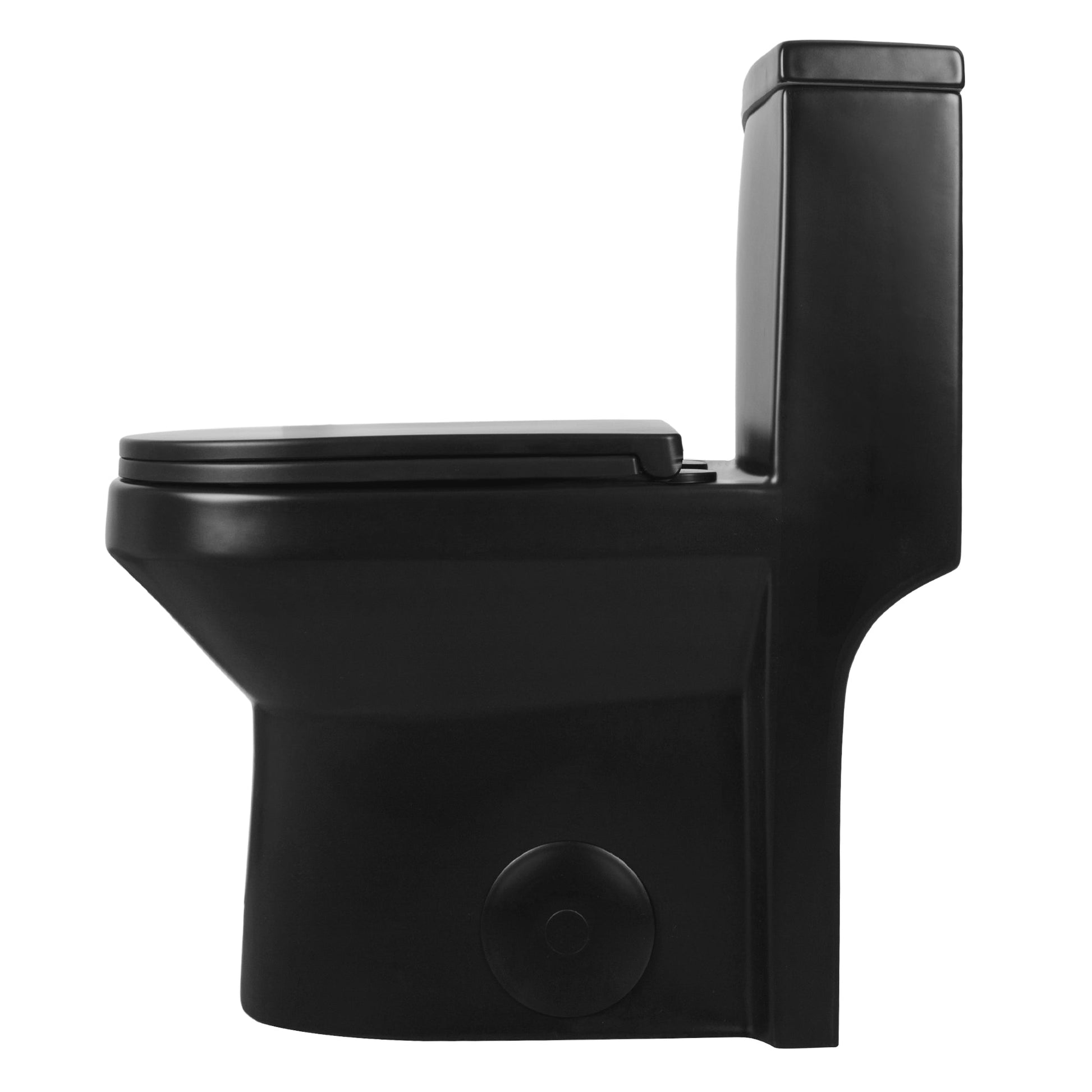

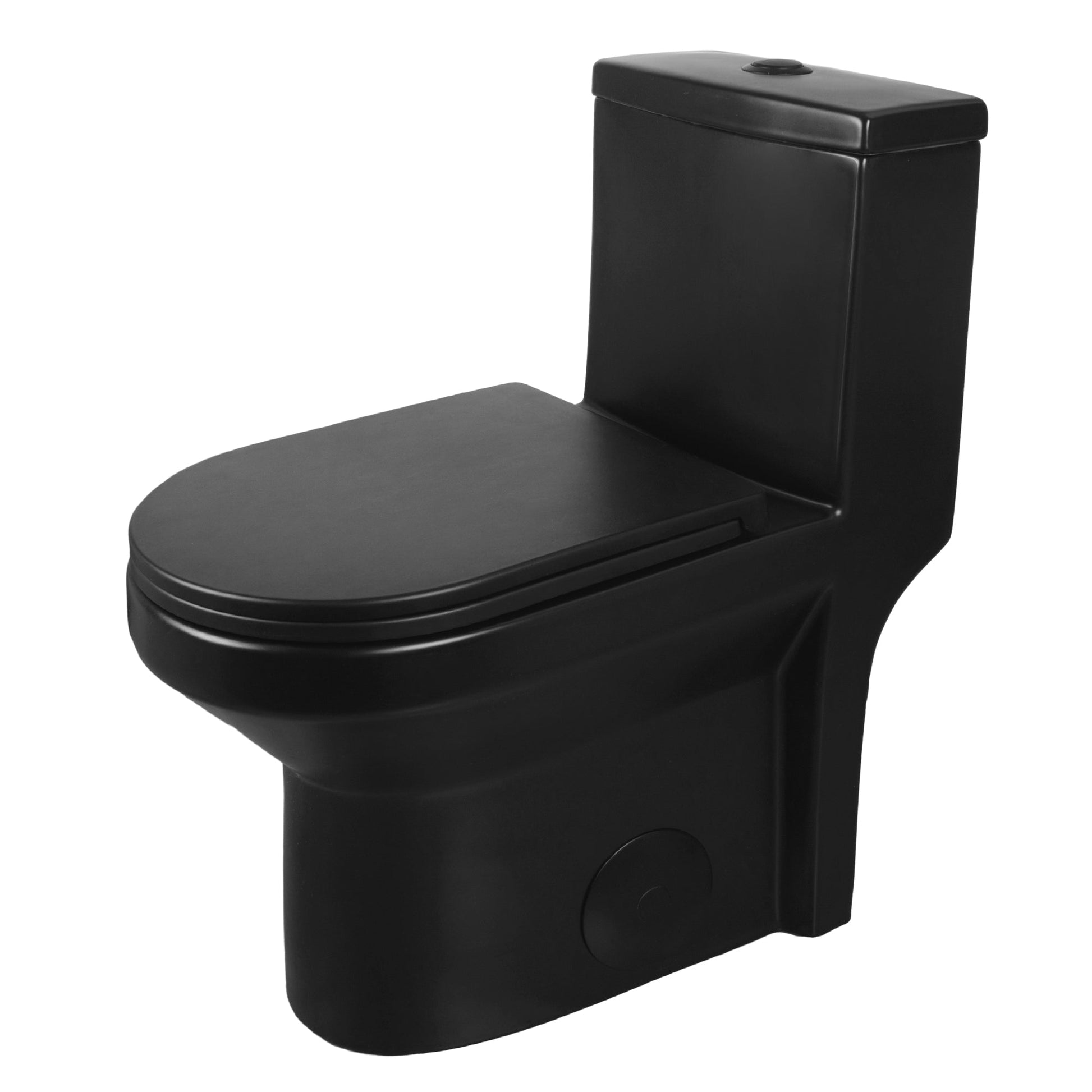

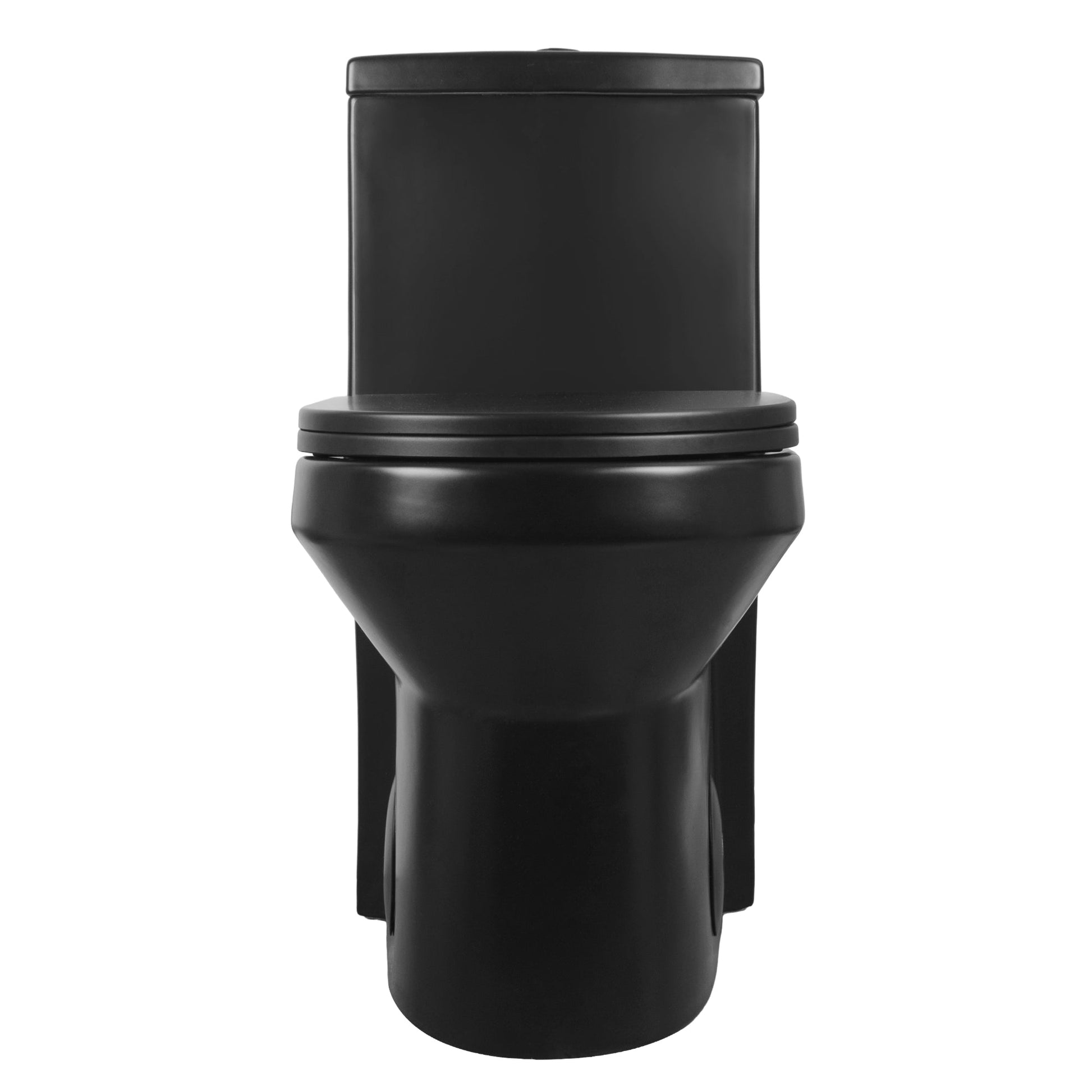

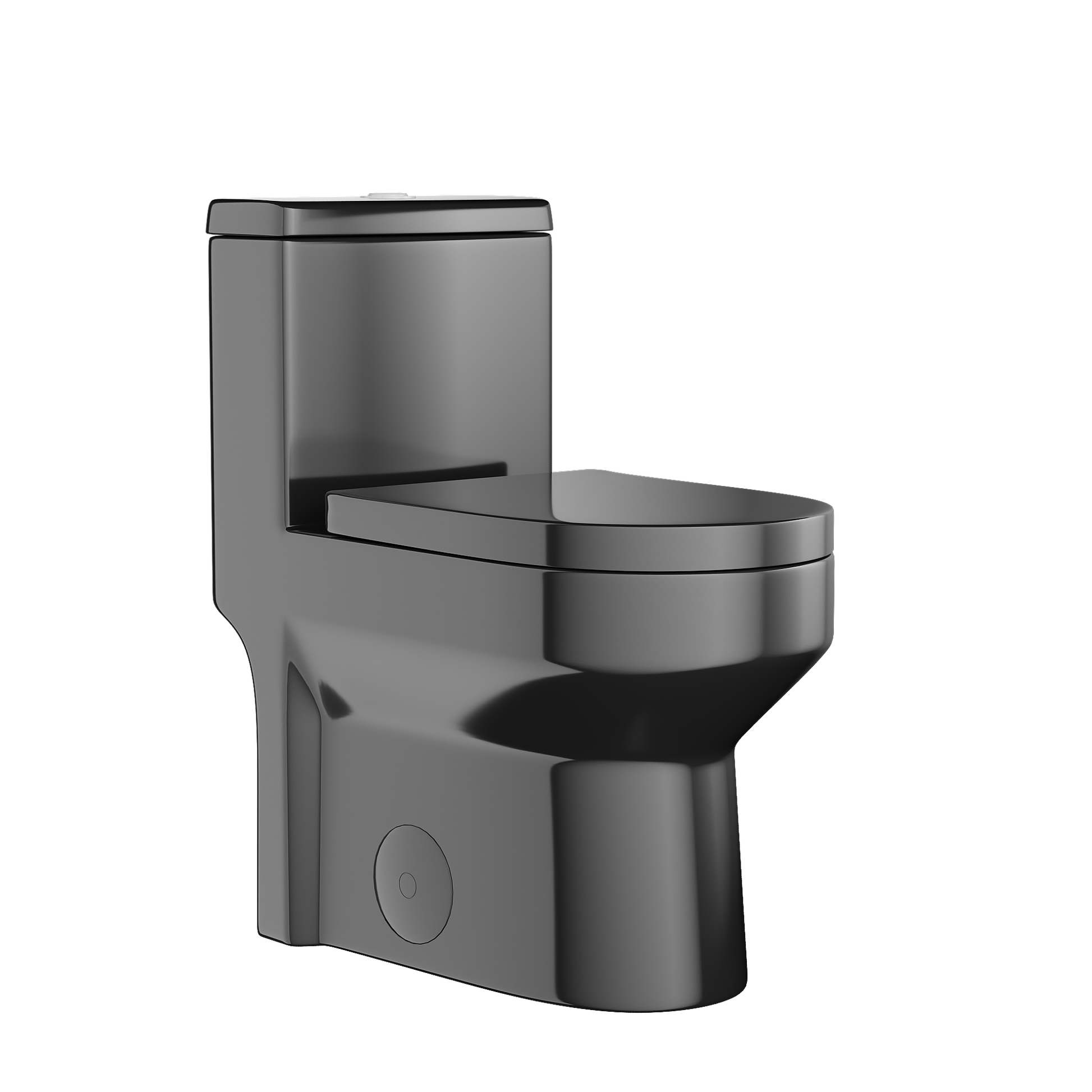

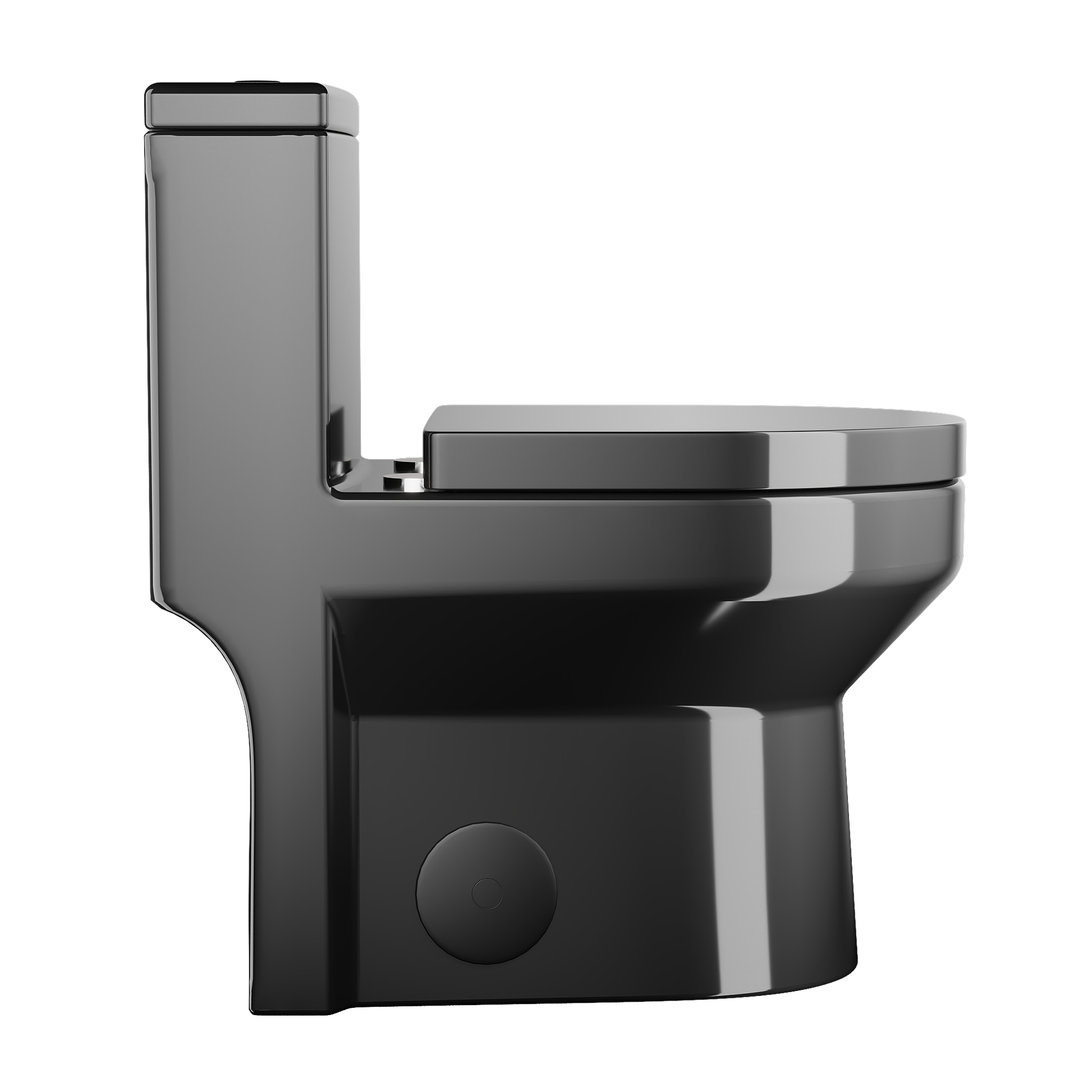

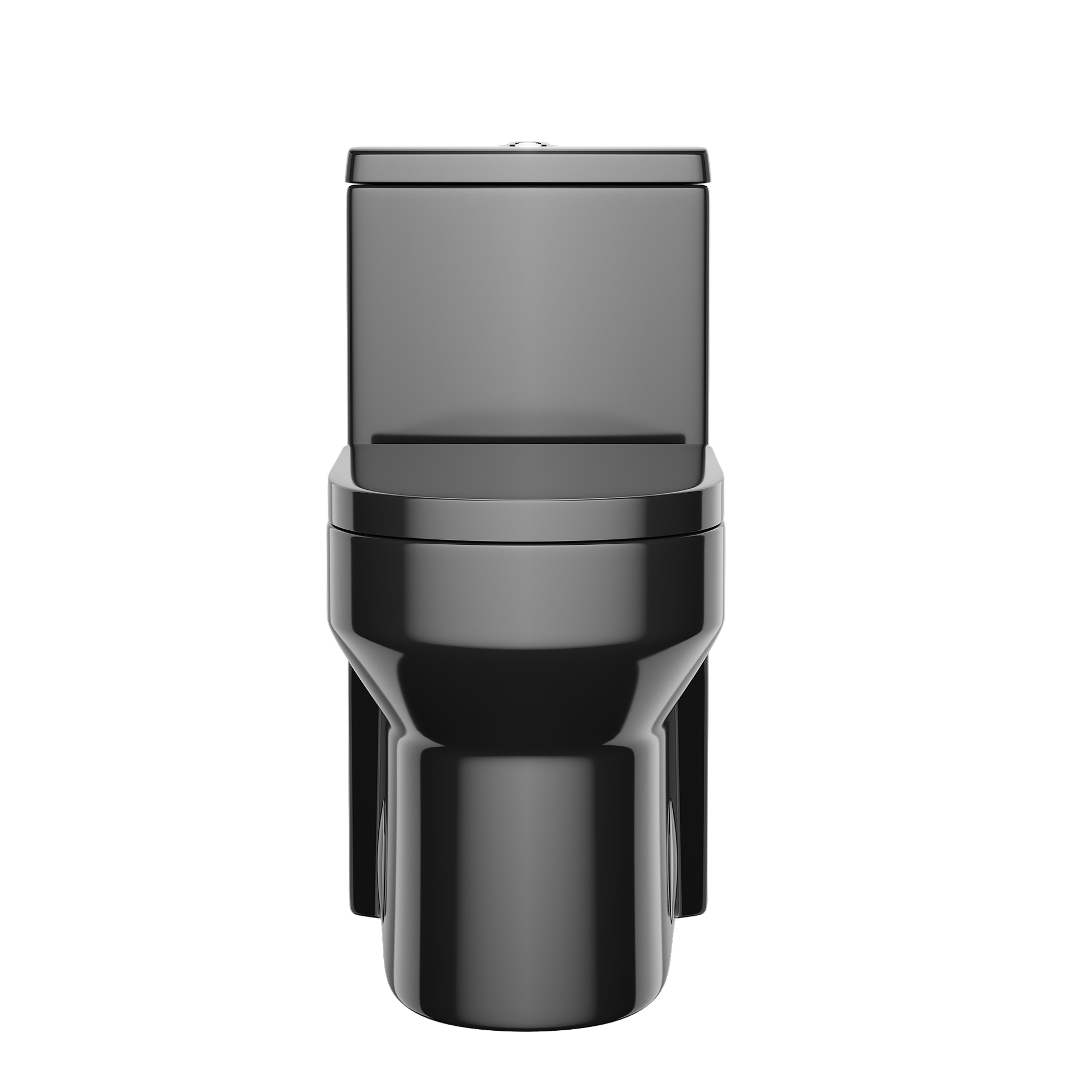

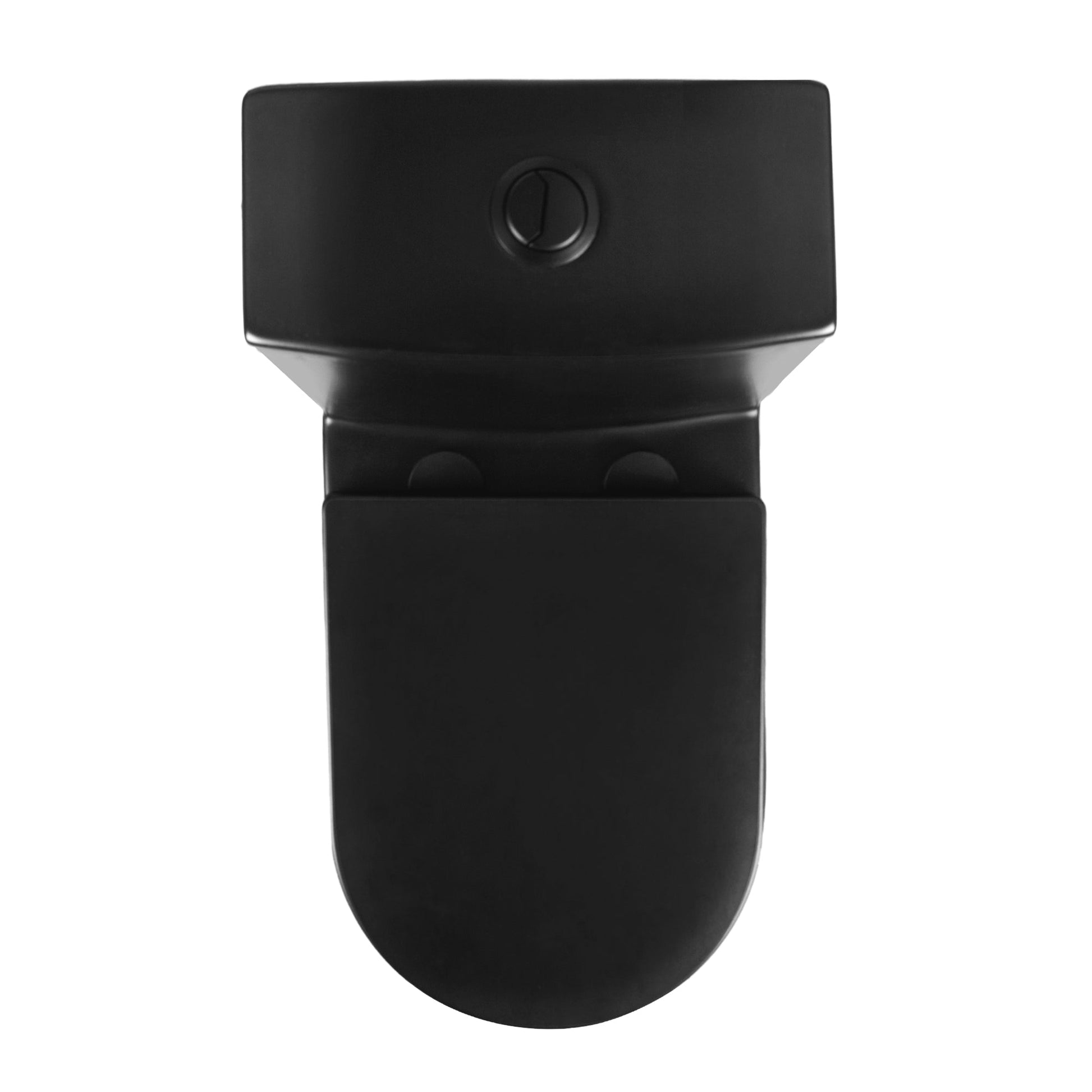

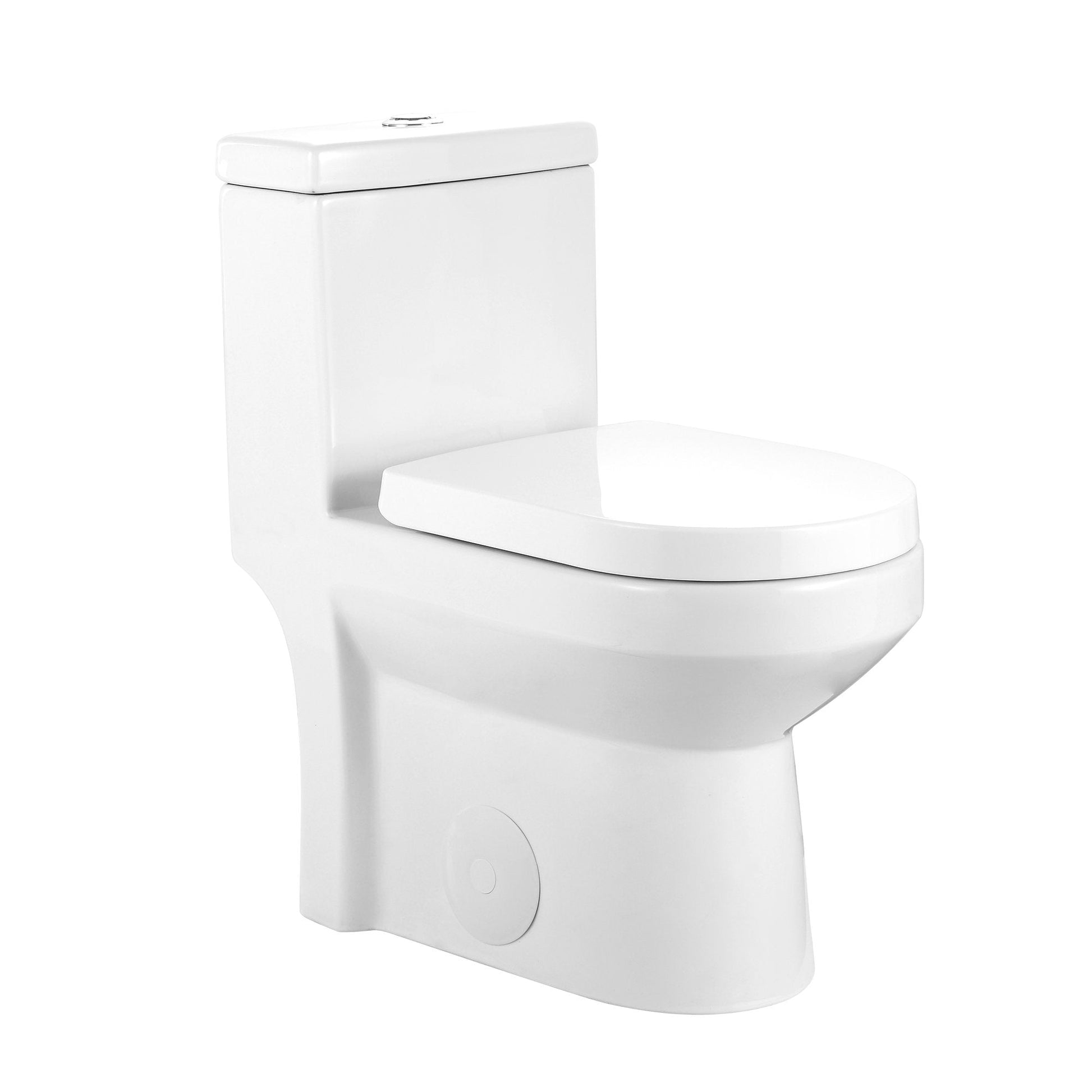

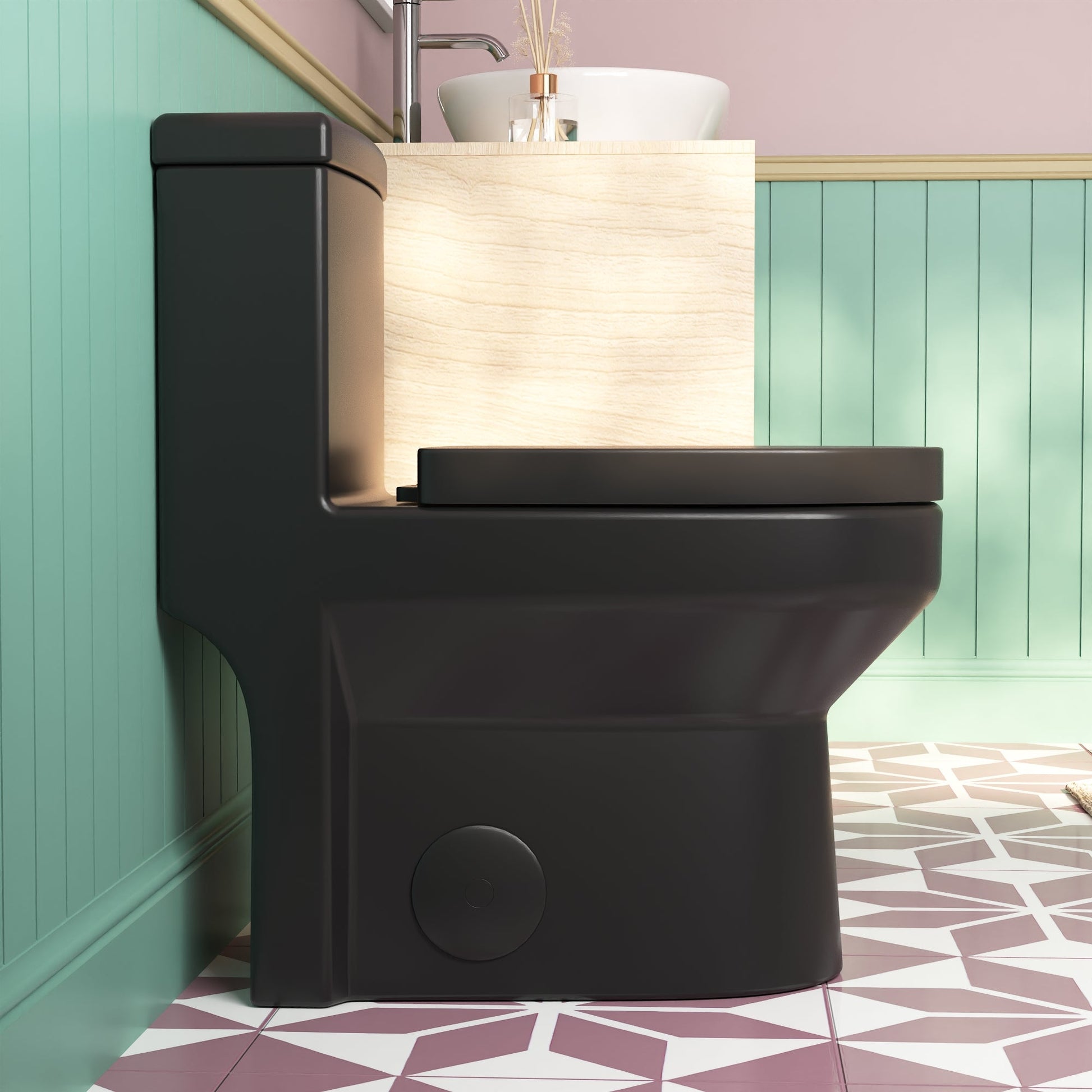

DeerValley DV-1F52812 Liberty Dual-Flush Elongated One-Piece Toilet (Seat Included)

Regular price $239.90 Sale price $326.56
On Sale

Shipping calculated at checkout

SKU: DV-1F52812

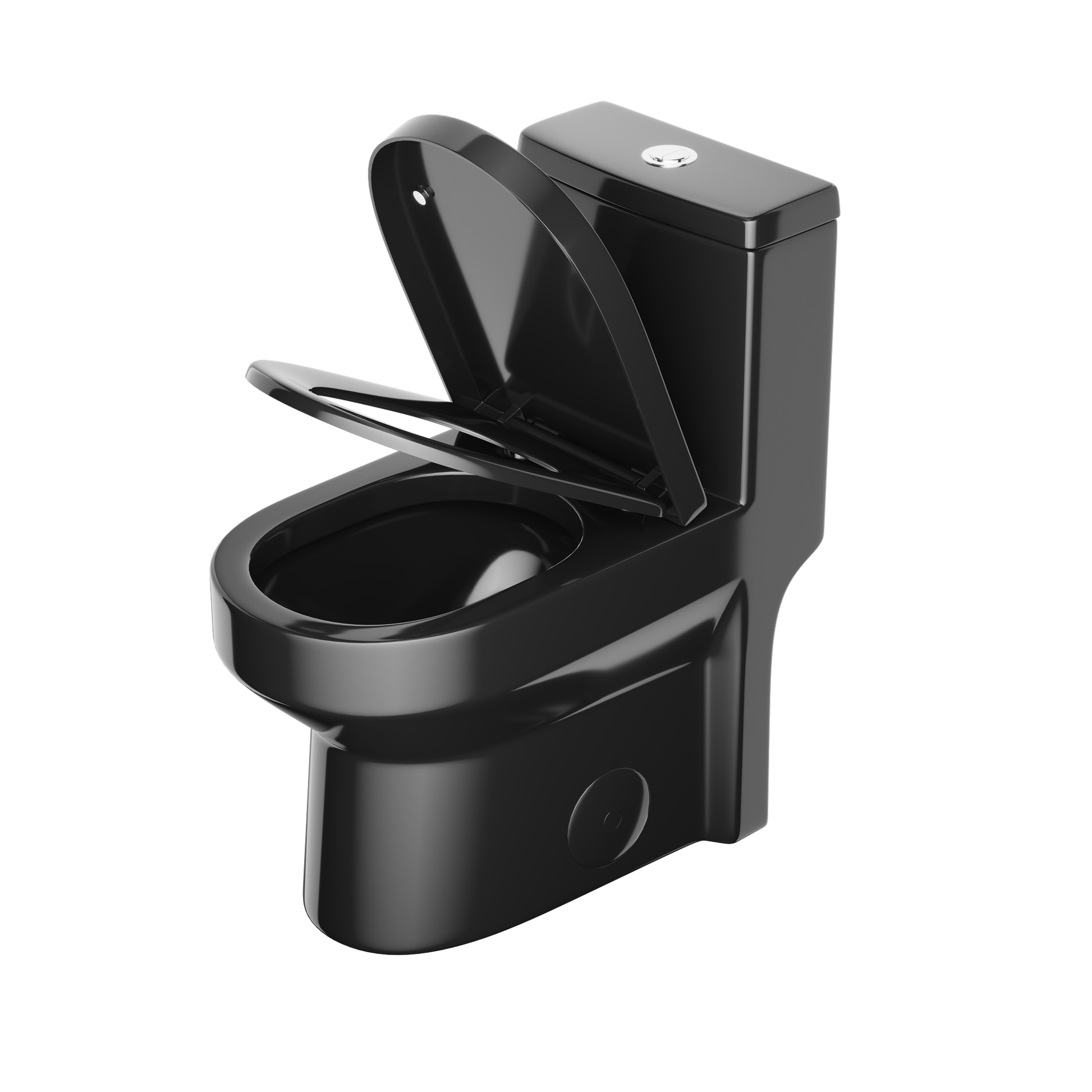

Contemporary and compact design. Although designed for very small spaces, this toilet looks perfect in every modern bathroom. The seat-lid closes silently. The dual-flush feature is ideal for water conservation.

Features

  • Modern, compact one-piece design. Perfectly suitable for your small bathroom;

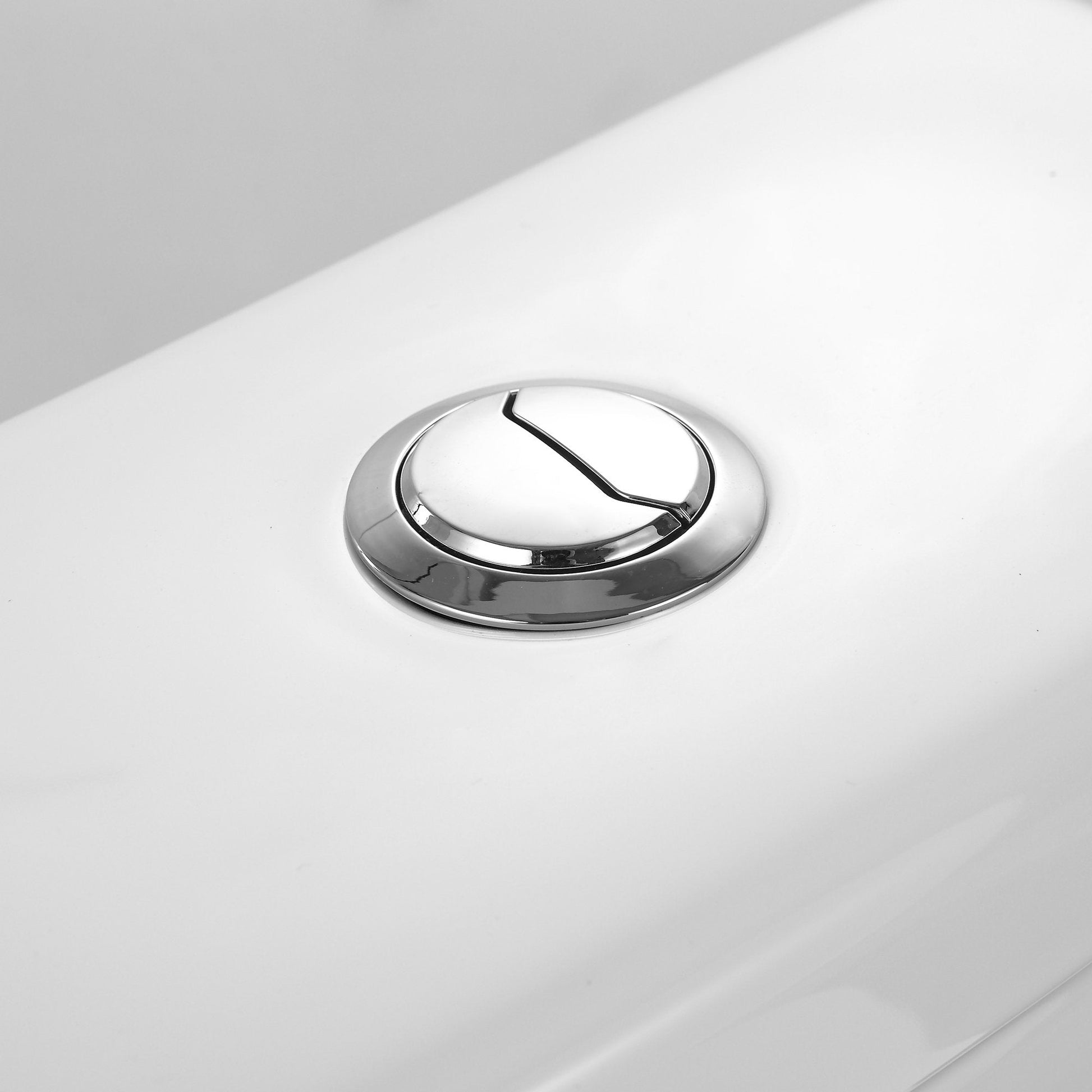

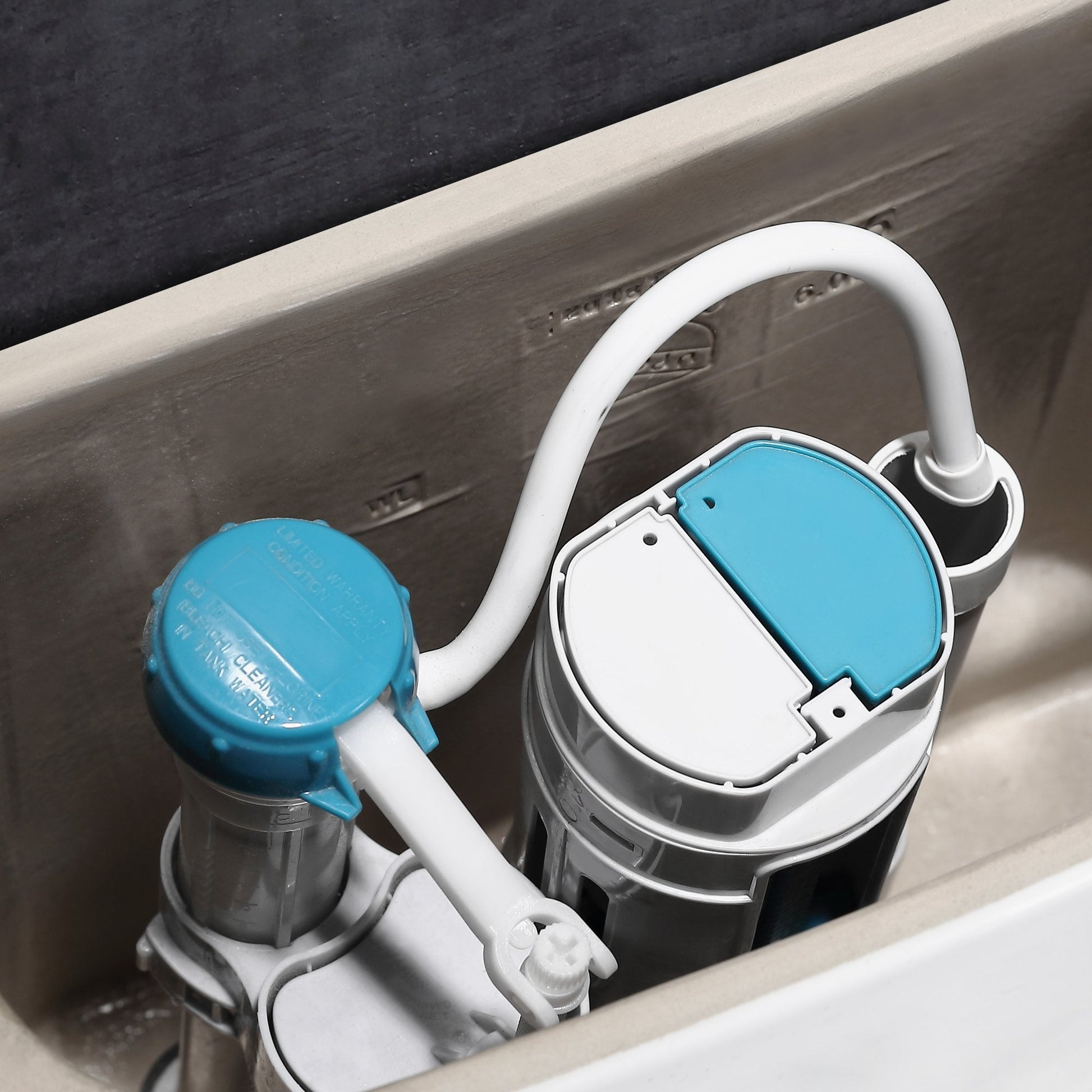

  • Siphon flushing: Fully glazed flush. Super-quiet and powerful flush with no clogs, leak-proof, highly efficient dual-flush;

  • Note that this toilet is designed for floor mounting, 12‘’ rough-in from wall to C/L outlet;

  • This is the smallest toilet in the current market, designed and perfectly fit for small bathrooms and water closets;

  • The toilet is easily installed and easy to keep clean;

  • The glazed surface is self-cleaning, simplifying maintenance;

  • Easily installed. The self-cleaning glazed surface is both attractive and easily maintained. Improved UF durable plastic seat and wax ring are included;

  • One-year limited warranty. DeerValley is always confident in our products and takes care of every customer.

Certifications

cUPC: Uniquely blend safety, hygiene, quality, and performance.
  EPA: Seamlessly blend comfort with environmental responsibility, excelling in performance.
   CEC: Certified user experience, energy efficiency, and environmental preservation.

Weights & Dimensions

Overall: 28.35'' H X 13.39'' W X 25.00'' L
Tank: 11.02'' H X 6.10'' W X 13.39'' L
Tank Lid: 1.77'' H X 6.10'' W X 13.39'' L
Toilet Seat: 1.57 Back/1.38 Front '' H X 13.19'' W X 17.91'' L
Toilet Seat Inside Ring: 7.87'' W X 11.02'' L
Bowl: 8.86'' W X 12.60'' L
Toilet Seat Height - Top to Bottom: 16.34''
Bowl Height - Top to Bottom: 15.55''
Trap-way Diameter: 2.36''
Rough In Size: 12.01''(DV-1F52812) / 10.00''(DV-1F52812R)
Bolts Spread Distance: 5.71''
Distance from the Seat Installation Hole to the Tank: 1.77''
Distance from the Back of the Toilet to the Wall: 3.35''
Toilet Installation Hole Distance: 5.71''
Height from the Bottom of the Water Tank to the Ground: 15.16''
Distance Between the Center of Adapter and the Center of Trap-way: 3.94''
Toilet Base Dimension(Length & Width): 17.72*12.99''
Overall Product Weight: 97 lb.

What included in the package?

  • Toilet seat, Fitting, Side bolt cover parts, Waxring screw, Installation instruction

Compatible Accessories

Installation Video (DV-1F52812/DV-1F52812R) :

    Installation Manual:





    Spec Sheet:
