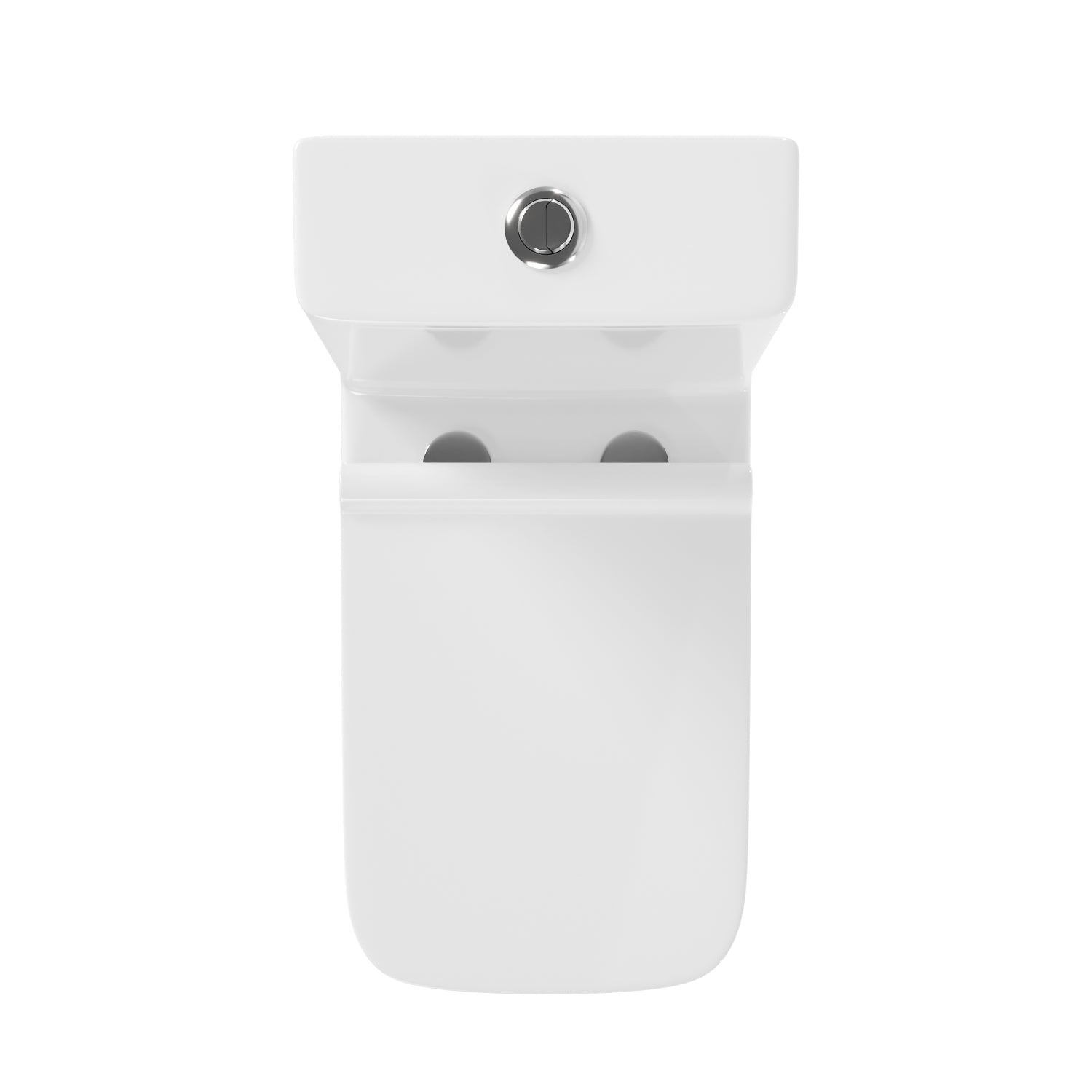

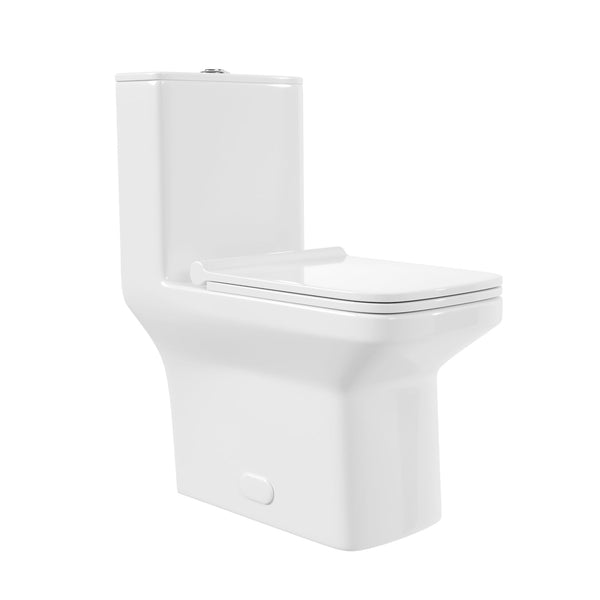

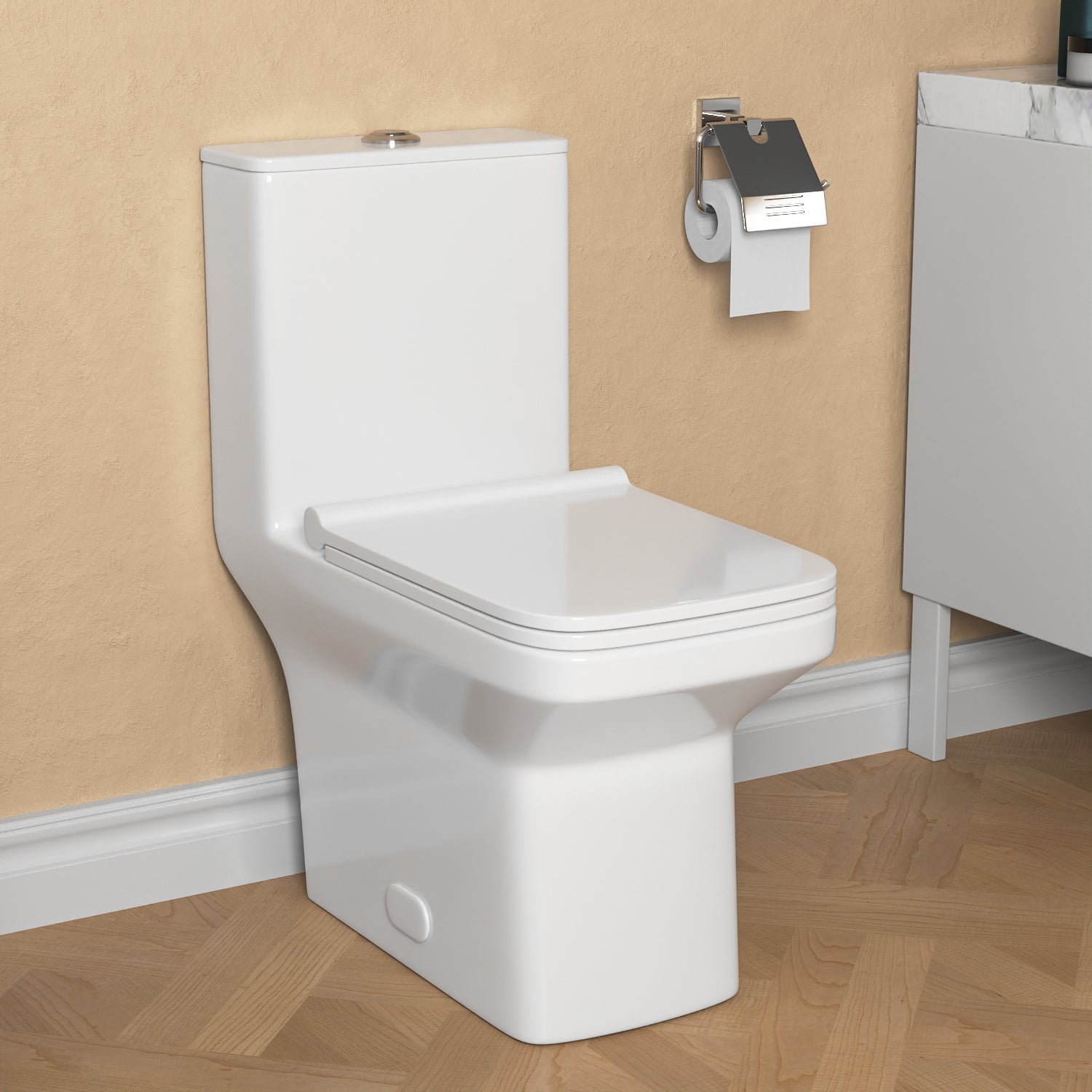

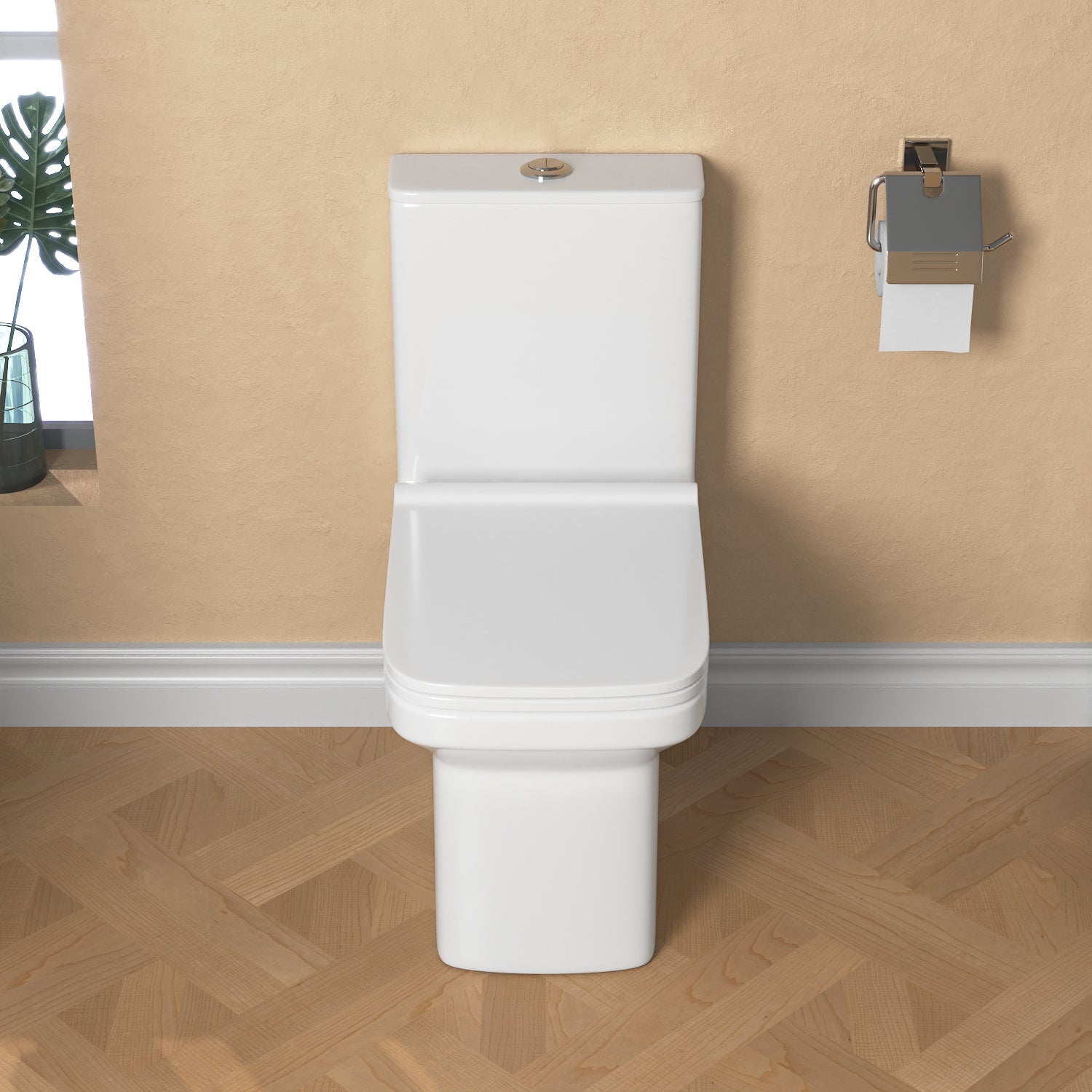

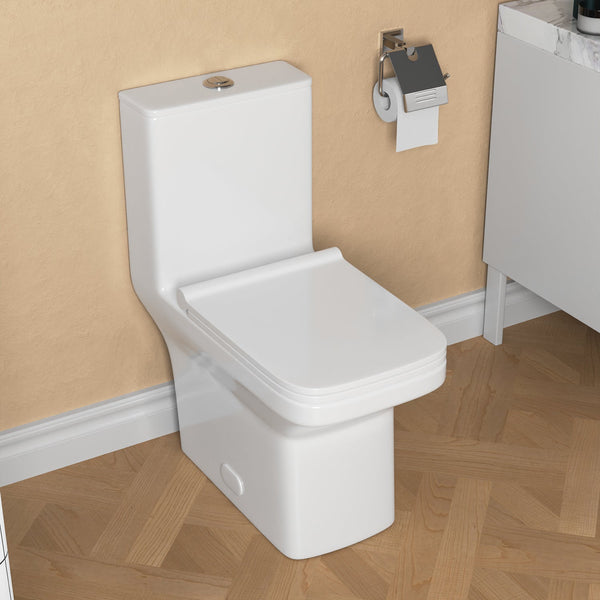

ACE One-Piece Square Toilet, 12" Rough-in Dual-Flush

Regular price $389.00 Sale price $457.64
On Sale

Shipping calculated at checkout

SKU: DV-1F0071
The DeerValley toilet possesses a rectangle seat and is easily installed and easy to keep clean. Elegance is added to any bathroom given its graceful design, while the square bowl offers improved comfort. The one-piece design makes it easy to install, and the soft-close toilet seat ensures that your family will not be awakened by the sound of the toilet lid closing. A fully skirted is both easy to clean and visually appealing, to be extremely resistant to scratches and stains.


  • The rectangle bowl offers a wide seating area.
  • With a self-cleaning glaze, this one-piece toilet is not easy to leave stains and has a super antibacterial effect.

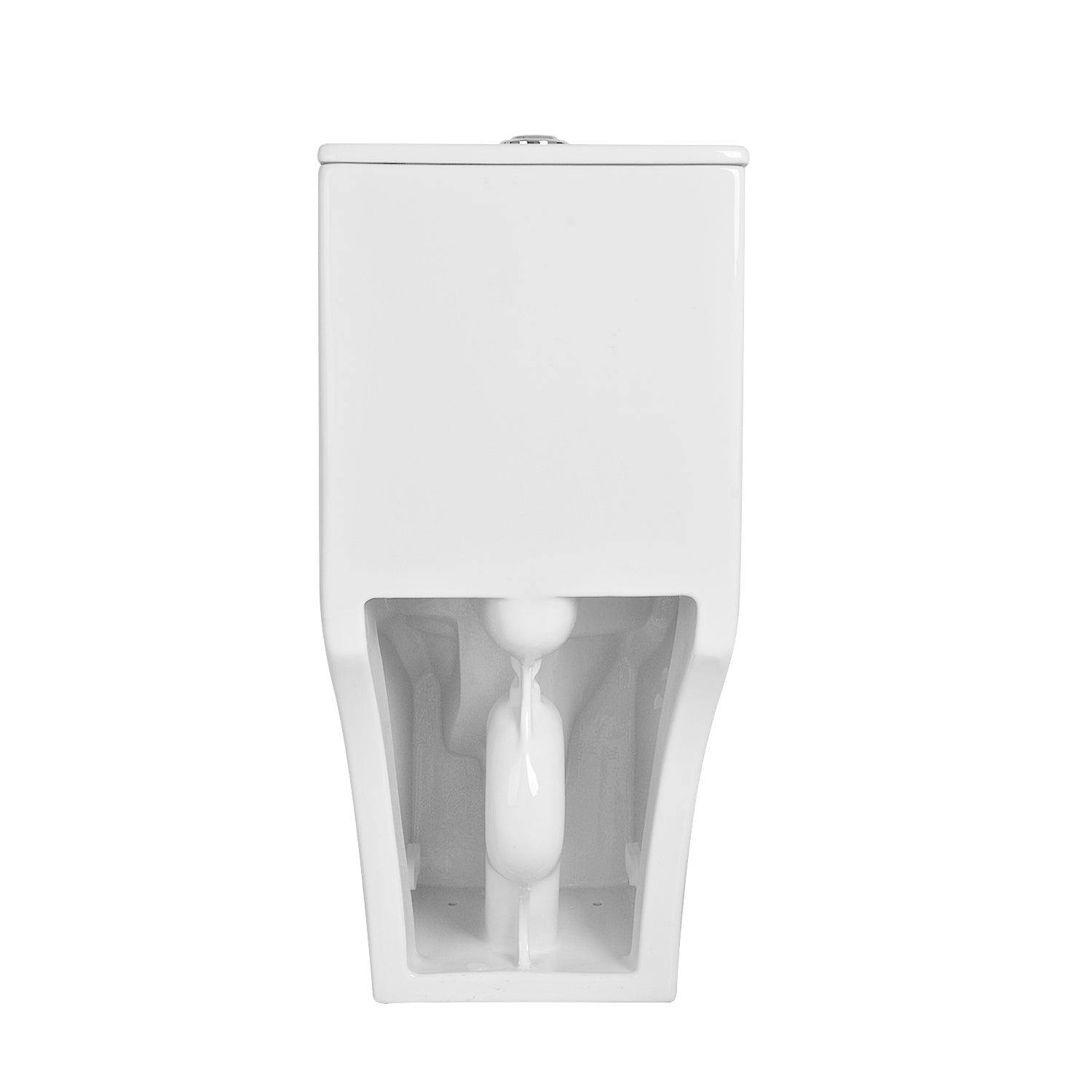

  • Concealed trap way design avoids the accumulation of dust and dirt in curved pipes which is more hygienic and easier to clean.
  • The dual-flush feature is ideal for water conservation.
  • This one-piece toilet is friendly-designed and easy to maintain.
  • Professional after-sale service and a one-year warranty.


cUPC: Uniquely blend safety, hygiene, quality, and performance.

EPA: Seamlessly blend comfort with environmental responsibility, excelling in performance.
CEC: Certified user experience, energy efficiency, and environmental preservation.

Weights & Dimensions

Overall: 25.79"L X 14.06"W X 30.51"H
Rough In Size: 12"
Toilet Seat Height - Top to Bottom: 16.61"
Bowl Height - Top to Bottom: 15.94"
Tank: 13.86"H X 13.98"L X 5.39" W
Tank Lid: 0.67"H X 14.06"L X 5.51" W
Bolts Spread Distance: 6.1"
Distance from the Seat Installation Hole to the Tank: 2.17"
Distance from the Back of the Toilet to the Wall: 3.54"
Toilet Installation Hole Distance: 5.91"
Height from the Bottom of the Water Tank to the Ground: 15.75"
Distance Between the Center of Adapter and the Center of Trapway: 4.13"
Trapway Diameter(Inside): 2.2"
Toilet Seat: 2.17/0.98 Back/Front" H X 14.17"W X 17.72"L
Toilet Seat Inside Ring: 8.46"W X 11.81"L
Bowl: 13.39"L X 9.65" W X 15.94"H
Toilet Base Dimension: 18.9"L X 11.02" W
Overall Product Weight: 123 lb.
Flush Volume: 1.1/1.6 GPF
What is included in the package?
  • Toilet seat, wax ring kit, bolts.


  • Waxring: DV-F0071P11
  • Side Bolt Cover: DV-F0071P21
  • Flush Button: DV-F0071V31
  • Fill Valve: DV-F0071V01
  • Toilet Seat: DV-F0071S11
  • Toilet Seat Quick Release Bracket: DV-F0071S01
  • Tank Lid: DV-F0071T11

Toilet Seat Bidet:

DeerValley's Toilet Seat Bidet offers convenience, eco-friendliness, and hygiene with its dedicated feminine wash, self-cleaning, electricity-free operation, and universal toilet compatibility.

    Installation Manual:

    DeerValley Bath always focuses on the development and production of bathroom products. We have superior factories to develop our high-quality products, a perfect after-sales service system, and are committed to providing excellent fashionable designs. We've been growing...
