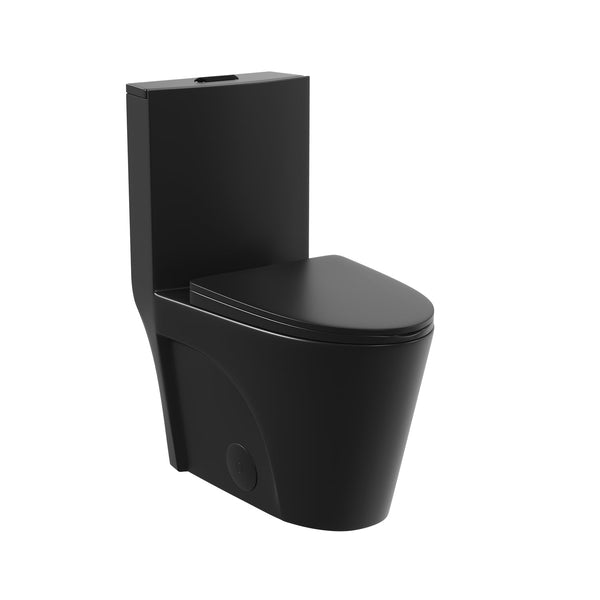

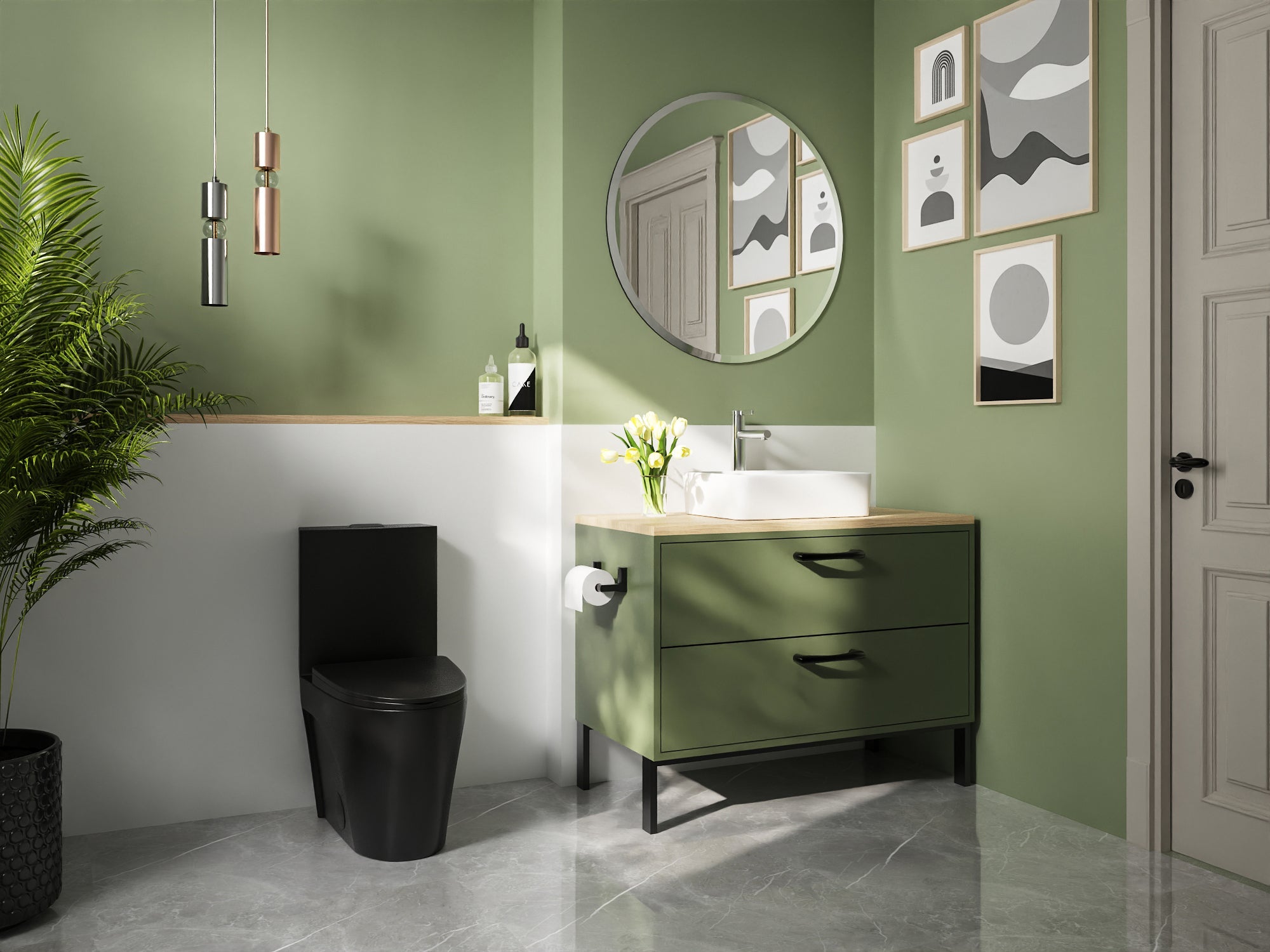

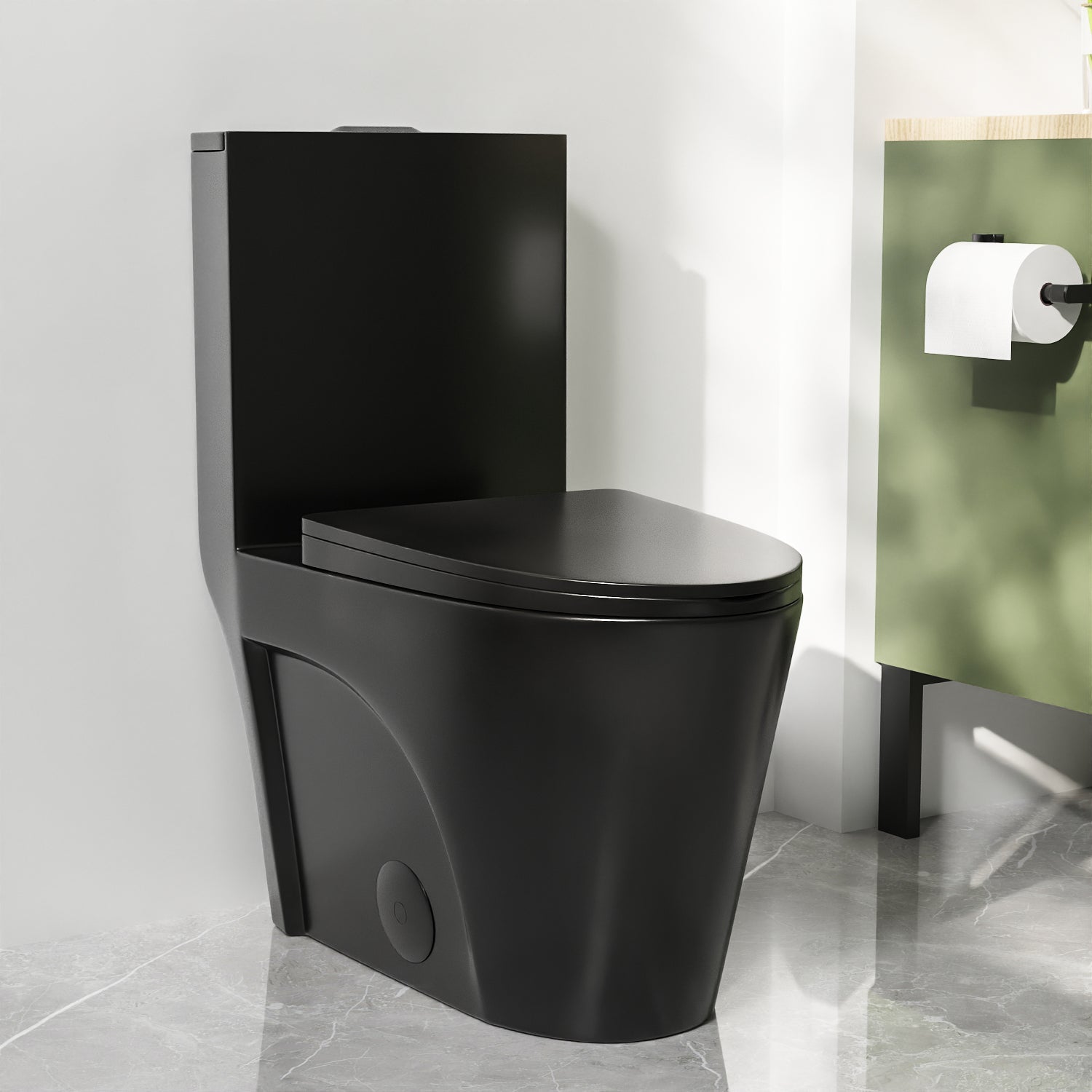

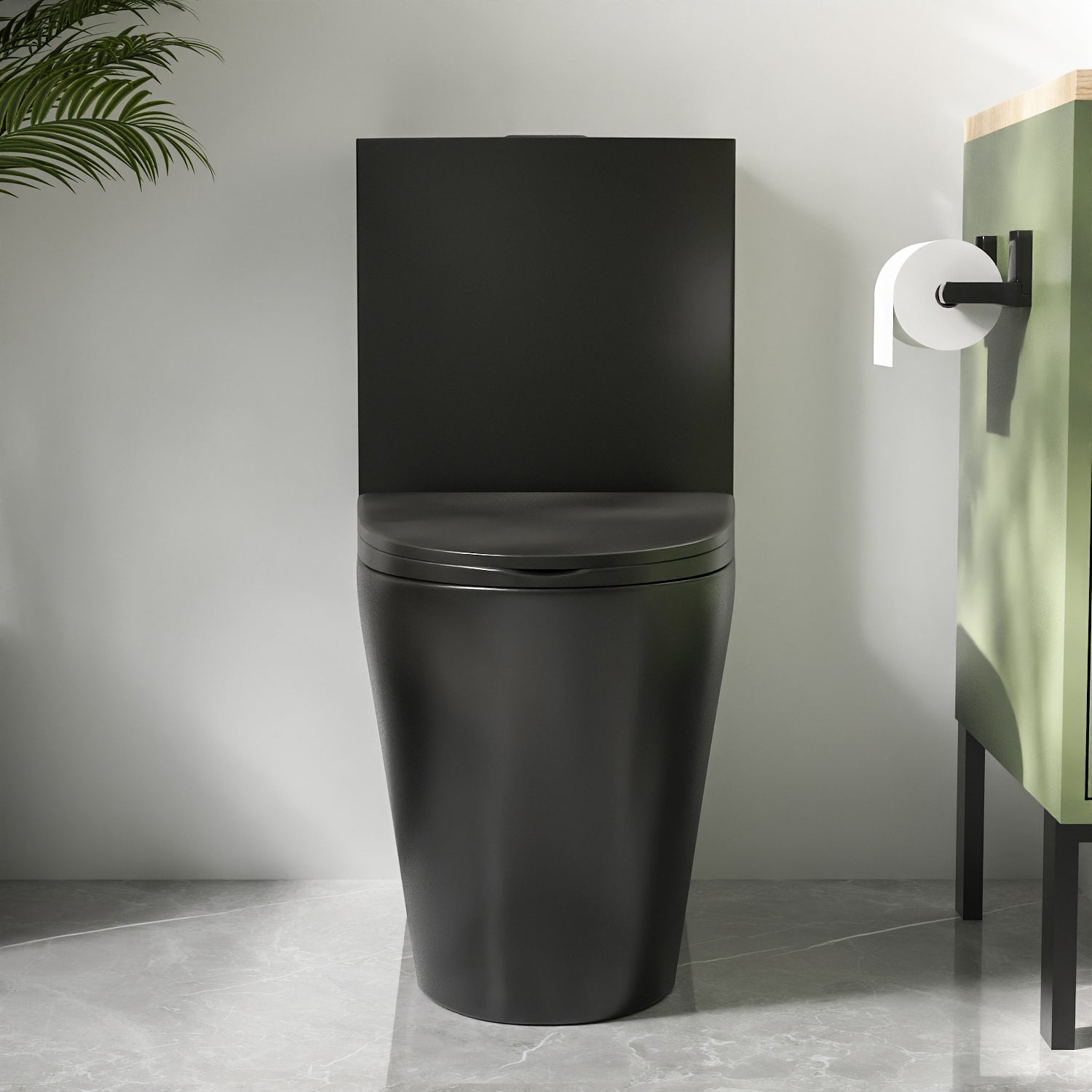

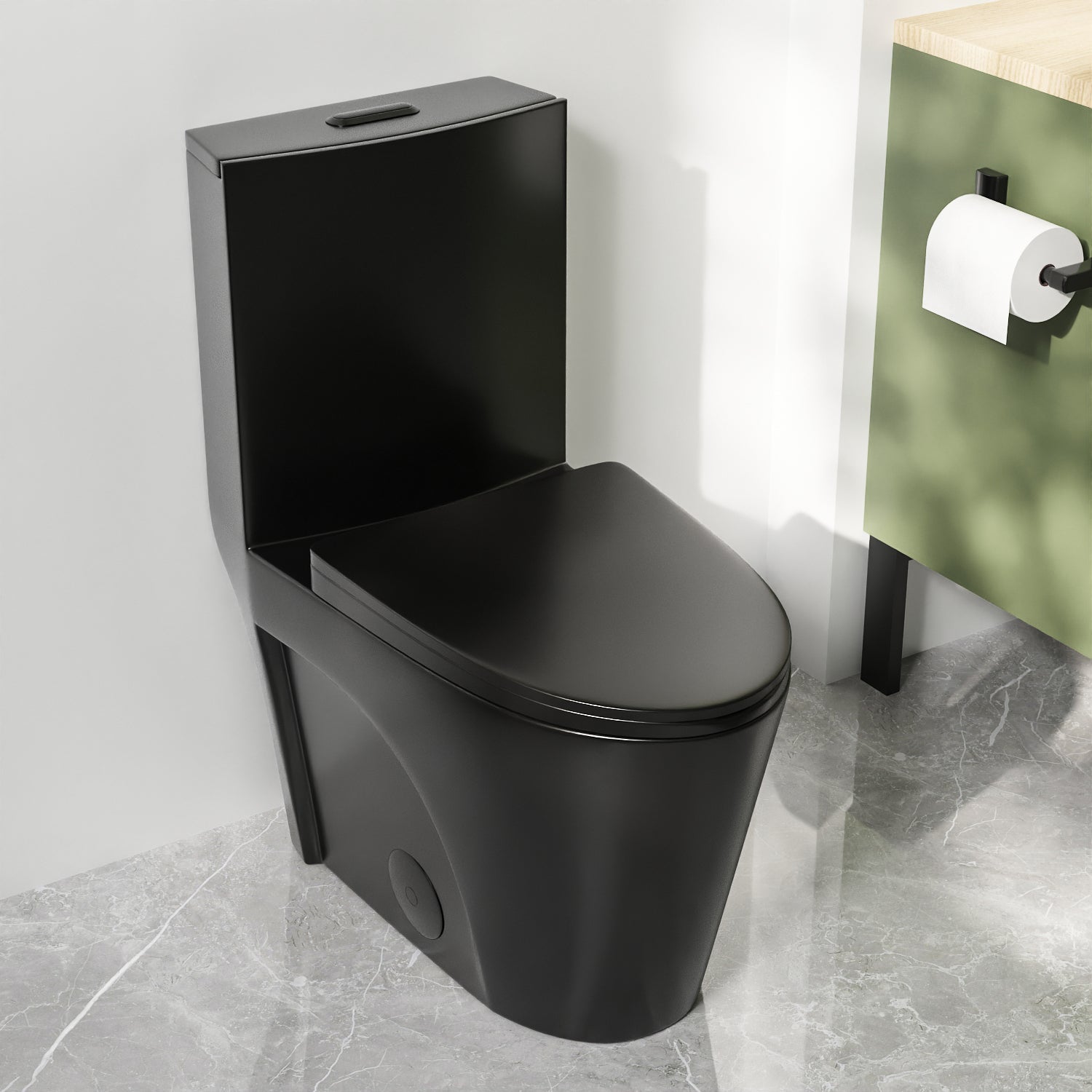

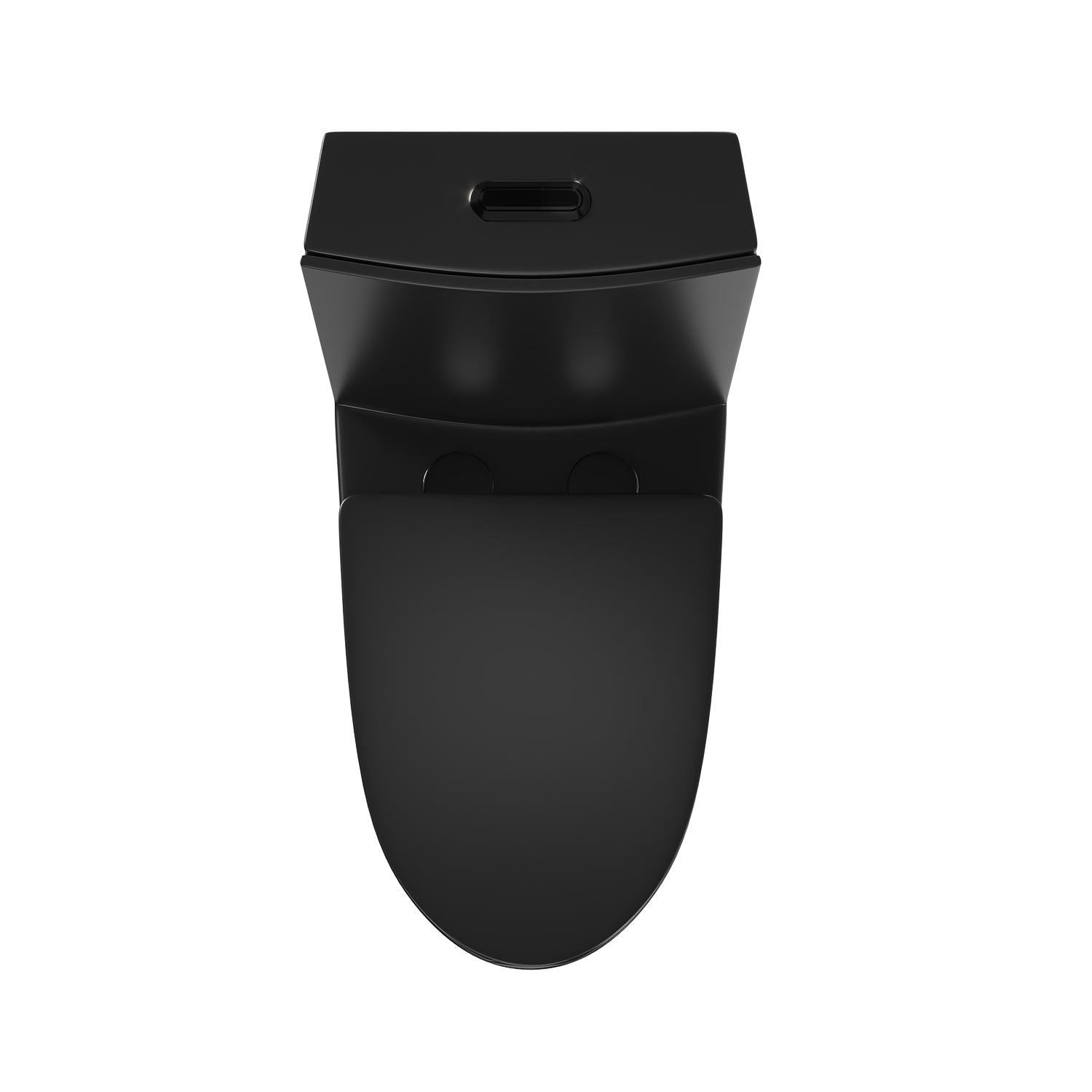

ACE One-Piece Elongated Toilet, 1.1/1.6 GPF Dual-Flush

  • SKU:
    DV-1F0027
Regular price $329.00
Sale price $329.00 Regular price $378.35
Unit price
Size guide Share
ACE One-Piece Elongated Toilet, 1.1/1.6 GPF Dual-Flush

ACE One-Piece Elongated Toilet, 1.1/1.6 GPF Dual-Flush

Why You Need the
DeerValley®+Toilet?

1

  • The toilet made of ceramic material calcined at high temperatures has a solid texture, good compressive ability, and strong corrosion resistance.
2

  • With a self-cleaning glaze, this toilet has a smooth and delicate surface, which does not easily leave stains, and has a super antibacterial effect.
3

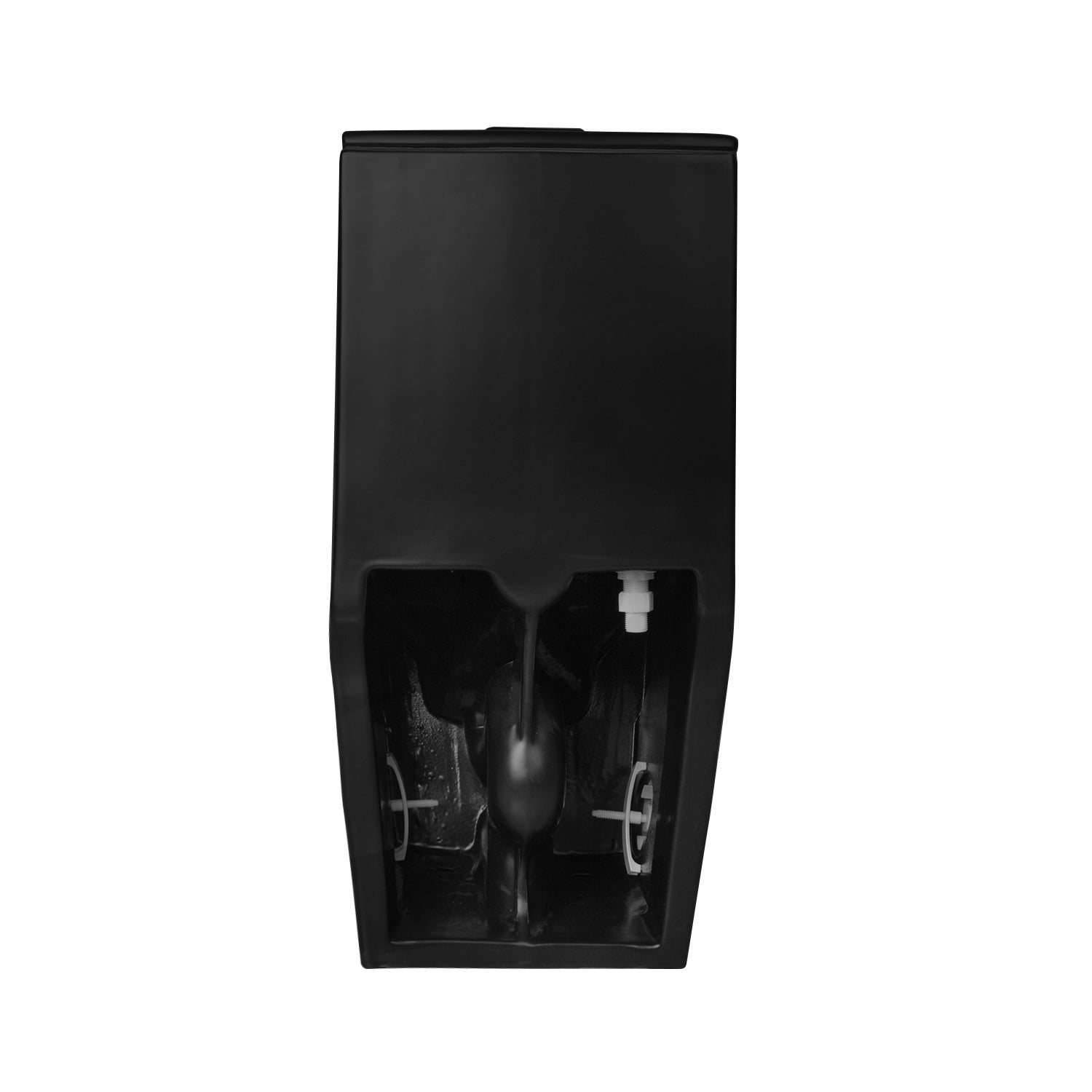

  • Concealed trapway design avoids the accumulation of dust and dirt in curved pipes which is more hygienic and easier to clean.
4

  • Dual flush toilet with a maximum flush of 1.6 GPF, which can effectively eliminate clogging problems.

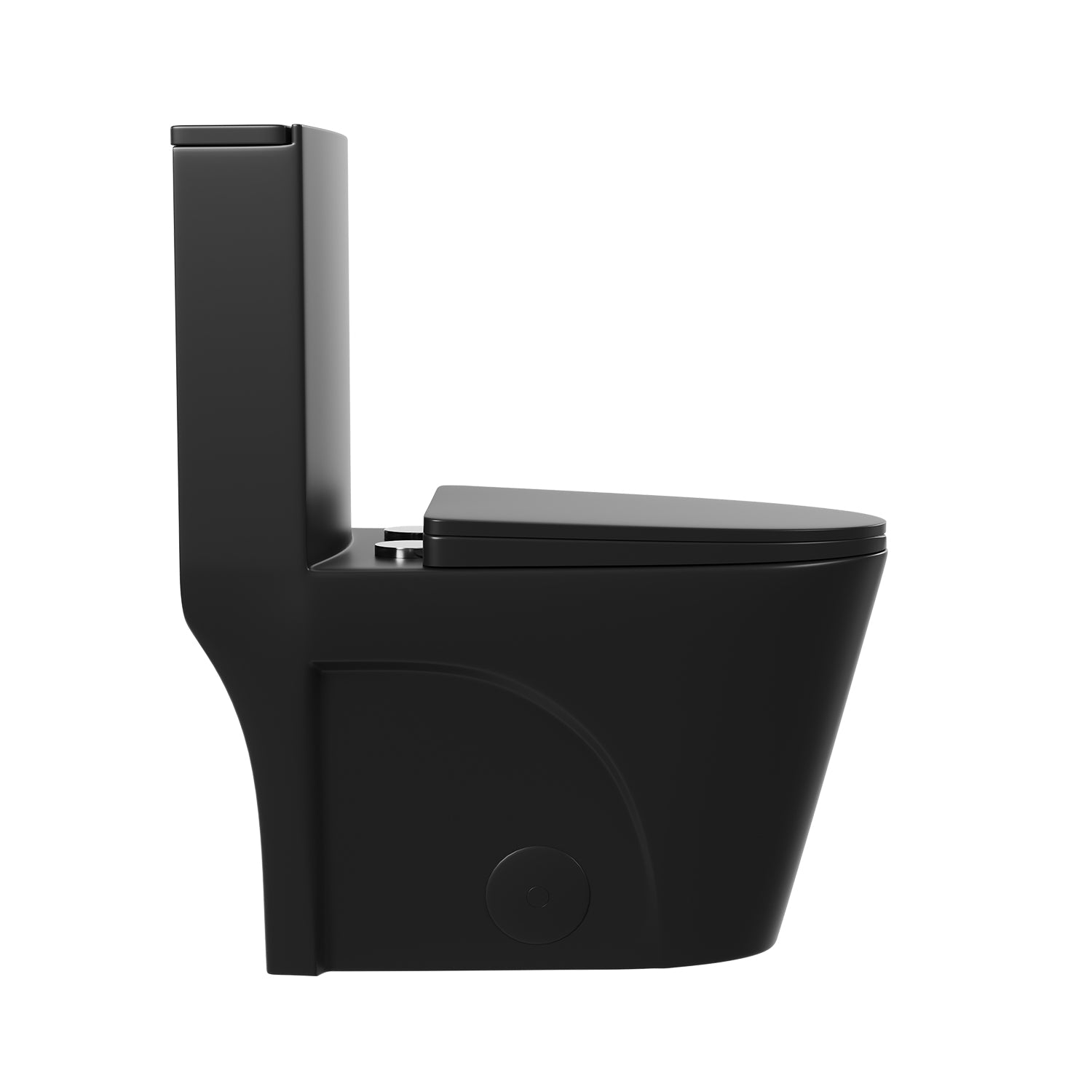

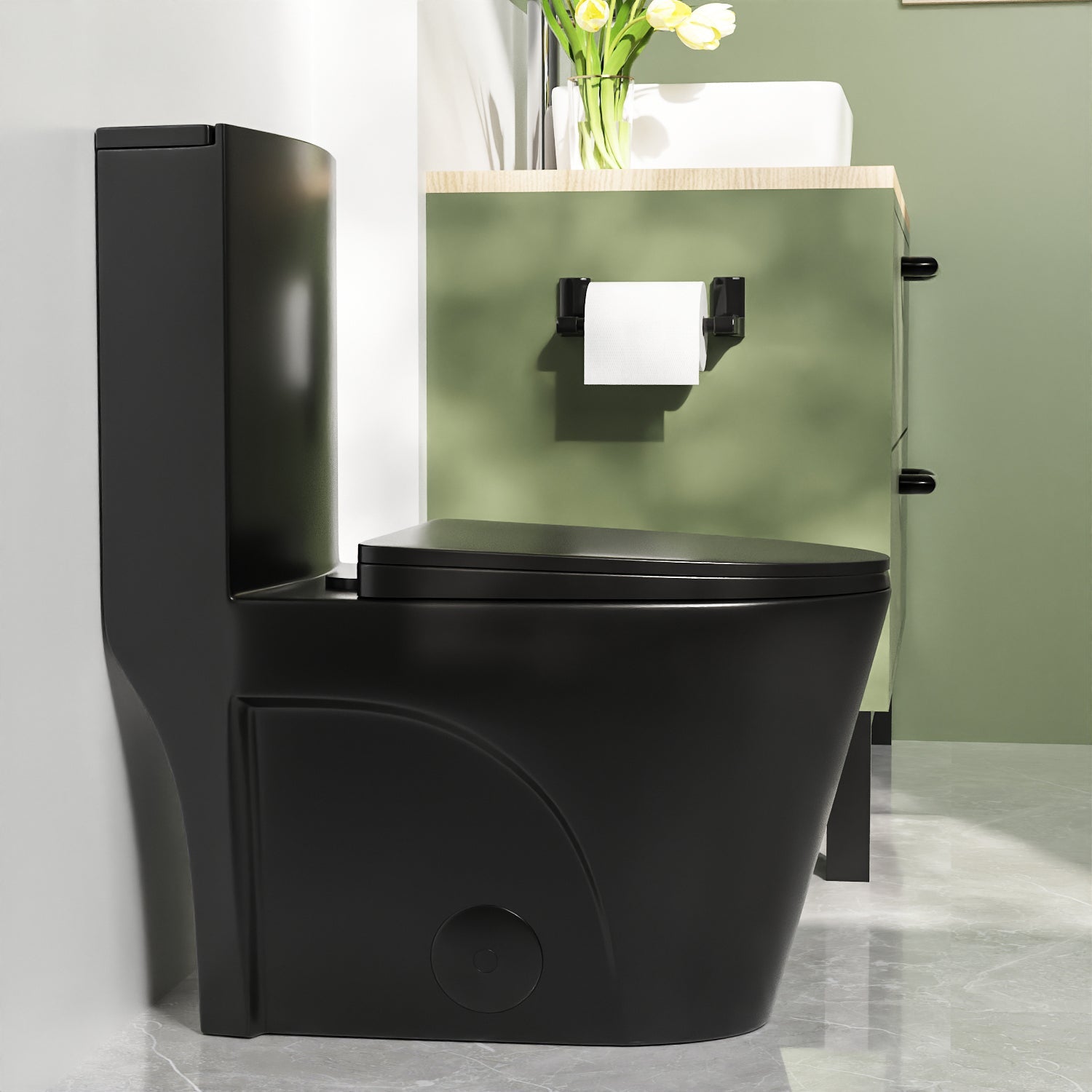

Fully Skirted Design
Modern skirted design for easy cleaning, no pipes can be seen. Your time should not be taken up by stubborn cleaning task.
Antibacterial Glazed Surface
Compare to ordinary glazed surface, DeerValley special glazed surface can be effectively antibacterial and protect your health.
Elongated Toilet Seat
Small volume, large seat Comfortable for long sitting, legs will not be numb
Soft Close Seat
The seat closes gently and quietly, preventing sudden slamming sounds and ensuring a peaceful environment without disturbing your family's sleep.

Certifications

cUPC: Uniquely blend safety, hygiene, quality, and performance.

EPA: Seamlessly blend comfort with environmental responsibility, excelling in performance.

CEC: Certified user experience, energy efficiency, and environmental preservation.
Specifications & Function
Accessories & Manual

Weights & Dimensions（Swipe it.➡️ ）

SKU DV-1F0027
Overall 26.97"L X 15.35"W X 30.31"H
Rough In Size 12"
Toilet Seat Height - Top to Bottom 17.32"
Bowl Height - Top to Bottom 16.14"
Tank 14.76"H X 14.76"L X 5.91"W
Tank Lid 0.63"H X 14.57"L X 5.63"W
Bolts Spread Distance 5.67"
Distance from the Seat Installation Hole to the Tank 2.56"
Distance from the Back of the Toilet to the Wall 3.54"
Toilet Installation Hole Distance 6.1"
Height from the Bottom of the Water Tank to the Ground 15.75"
Distance Between the Center of Adapter and the Center of Trapway 4.33"
Trapway Diameter(Inside) 2.17"
Toilet Seat 2.36/3.43 Back/Front" H X 14.96"W X 17.91"L
Toilet Seat Inside Ring 8.98"W X 12.36"L
Bowl 14.84"L X 11.1"W X 16.14"H
Toilet Base Dimension 19.88"L X 12.6"W
Overall Product Weight 117 lb
Flush Volume 1.1/1.6 GPF

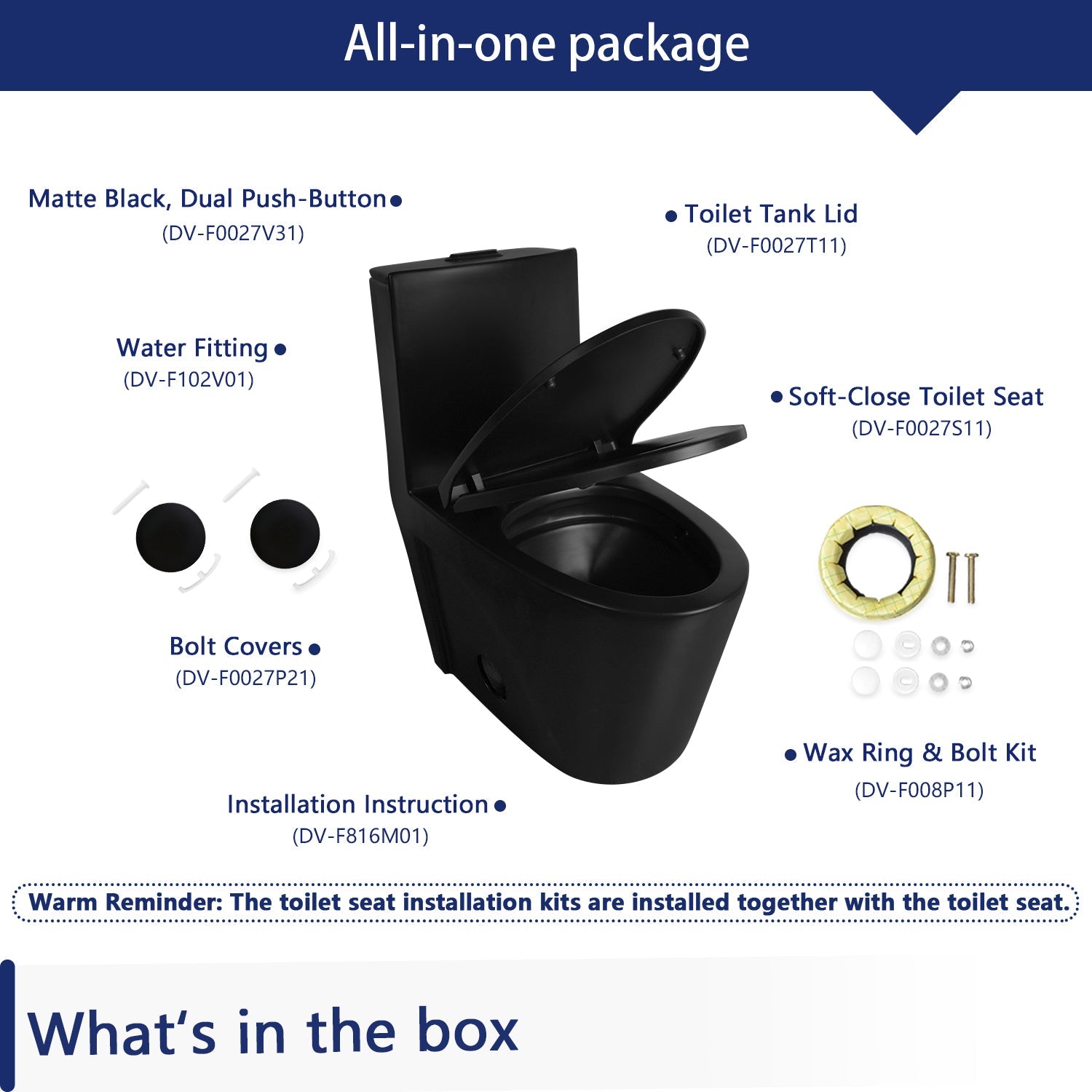

What is included in the package?

  • Toilet Flange, Toilet tank side lid.



Compatible Accessories

  • Toilet Seat: DV-F0027S11
  • Side bolt cover parts: DV-F0027P21
  • Tank lid: DV-F0027T11
  • Flushing button: DV-F0027V31



Toilet Seat Bidet:

DeerValley's Toilet Seat Bidet offers convenience, eco-friendliness, and hygiene with its dedicated feminine wash, self-cleaning, electricity-free operation, and universal toilet compatibility.



    Installation Manual:
