DV-1F0072 Ace Square/Rectangular One-Piece Toilet, 12" Rough-in Dual-Flush

Regular price $369.00 Sale price $434.90
On Sale

Shipping calculated at checkout

SKU: DV-1F0072

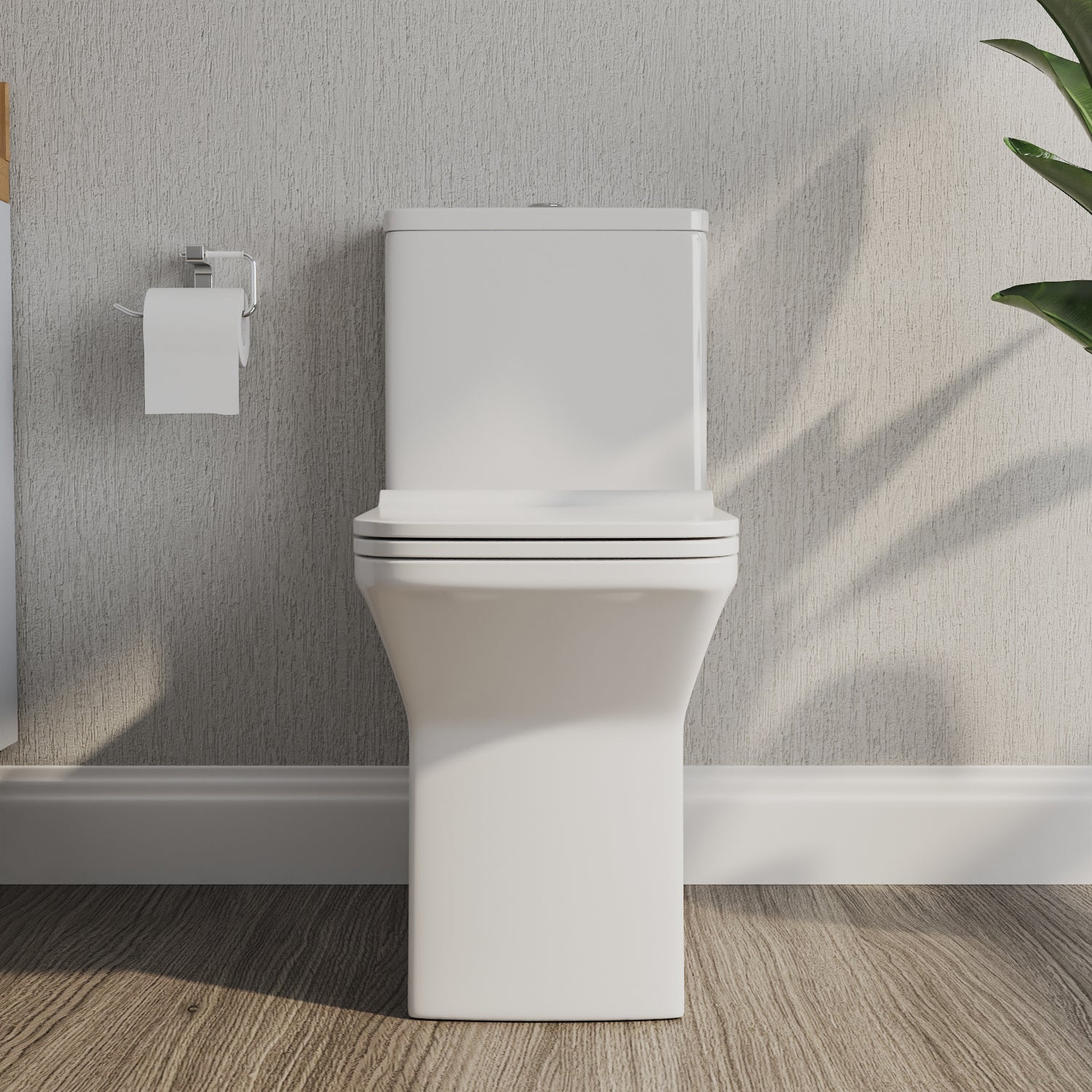

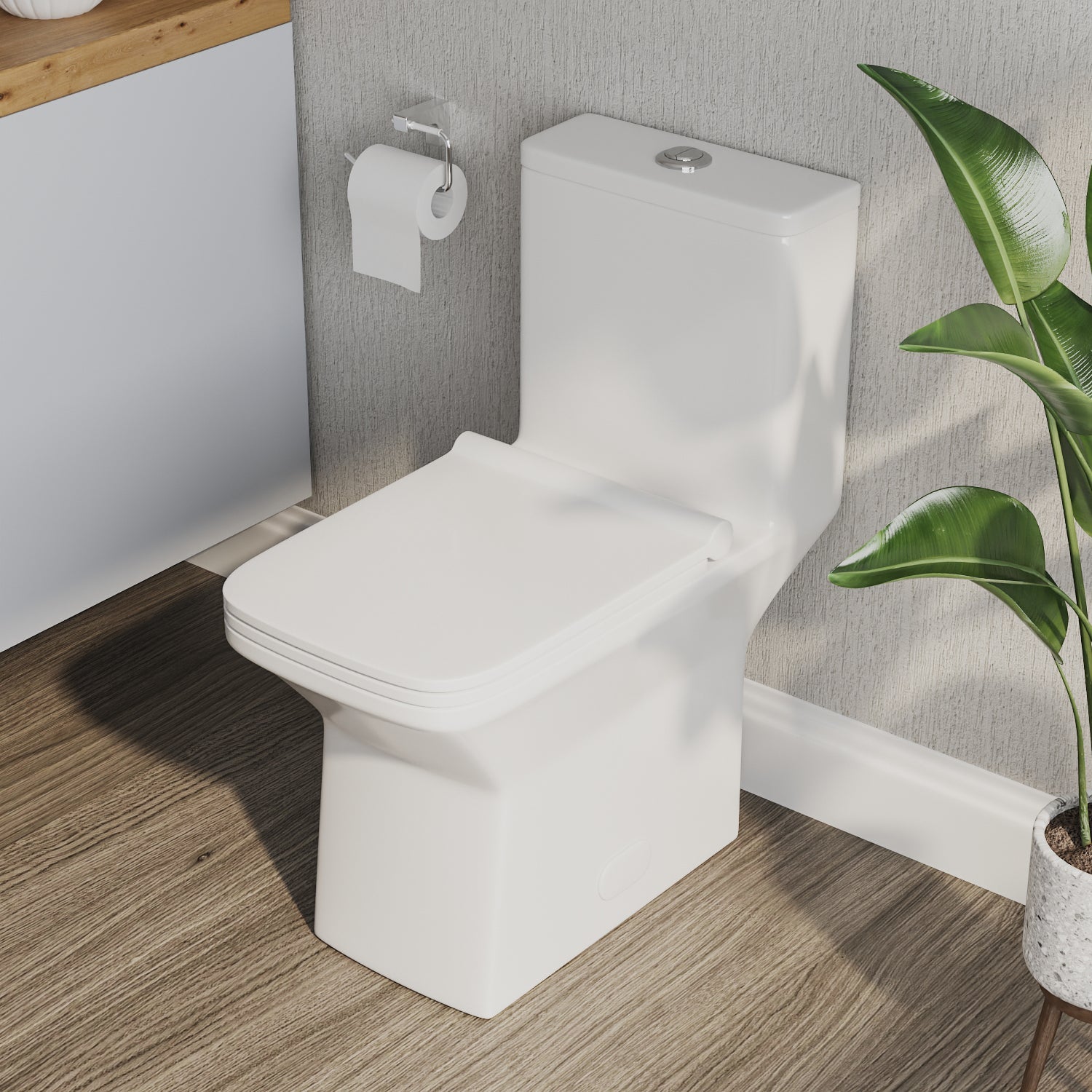

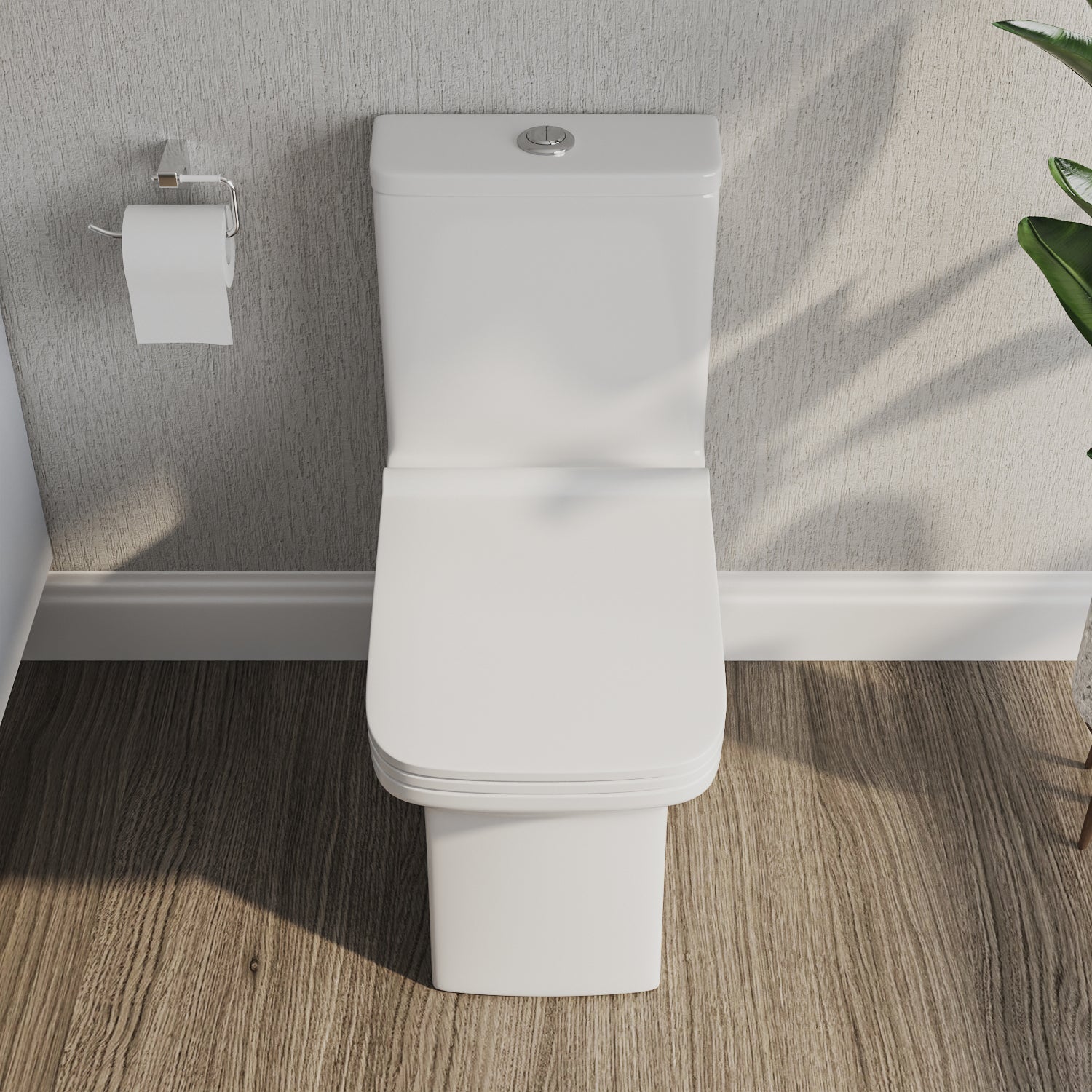

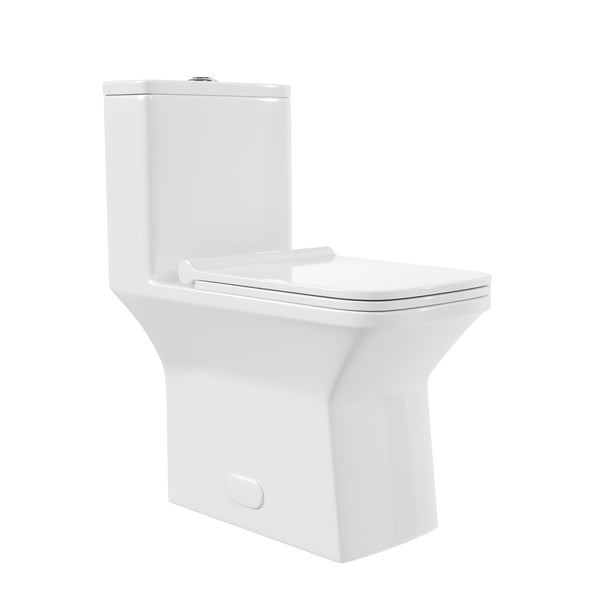

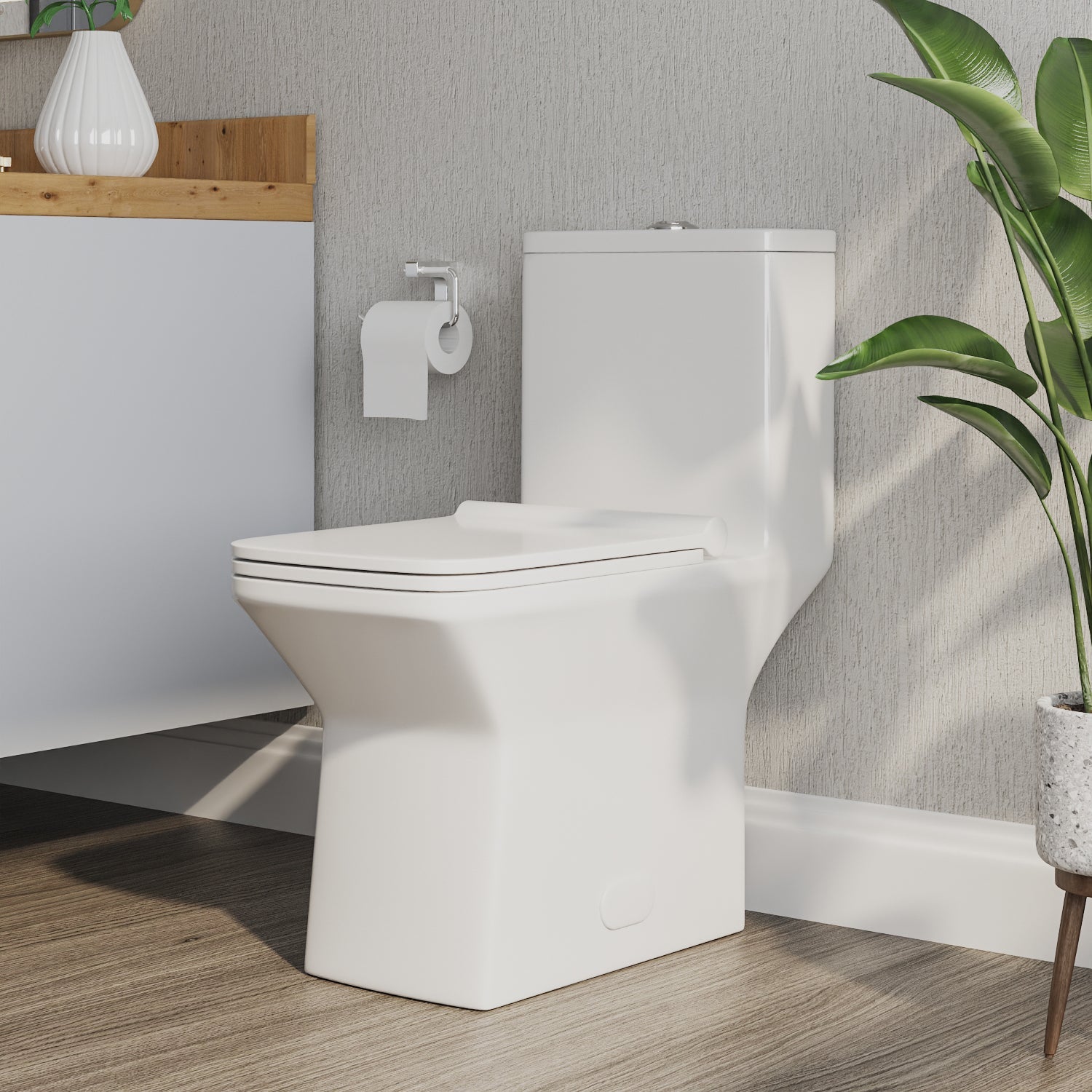

The DeerValley one-piece toilet possesses a fully skirted bowl and rectangle seat for a modern design that will adapt to any bathroom suite. The soft-close toilet seat mechanism ensures that your family will not be awakened by the sound of the toilet lid closing. The dual-flush function offers the ability to conserve water without compromising performance. The hidden pipe design makes its appearance tidier and easier to clean. DeerValley's one-piece toilet will be the choice to meet your needs.


  • The rectangle bowl offers a wide seating area.
  • This one-piece toilet is easy to install and the quick-release seat can be unlatched from the toilet.

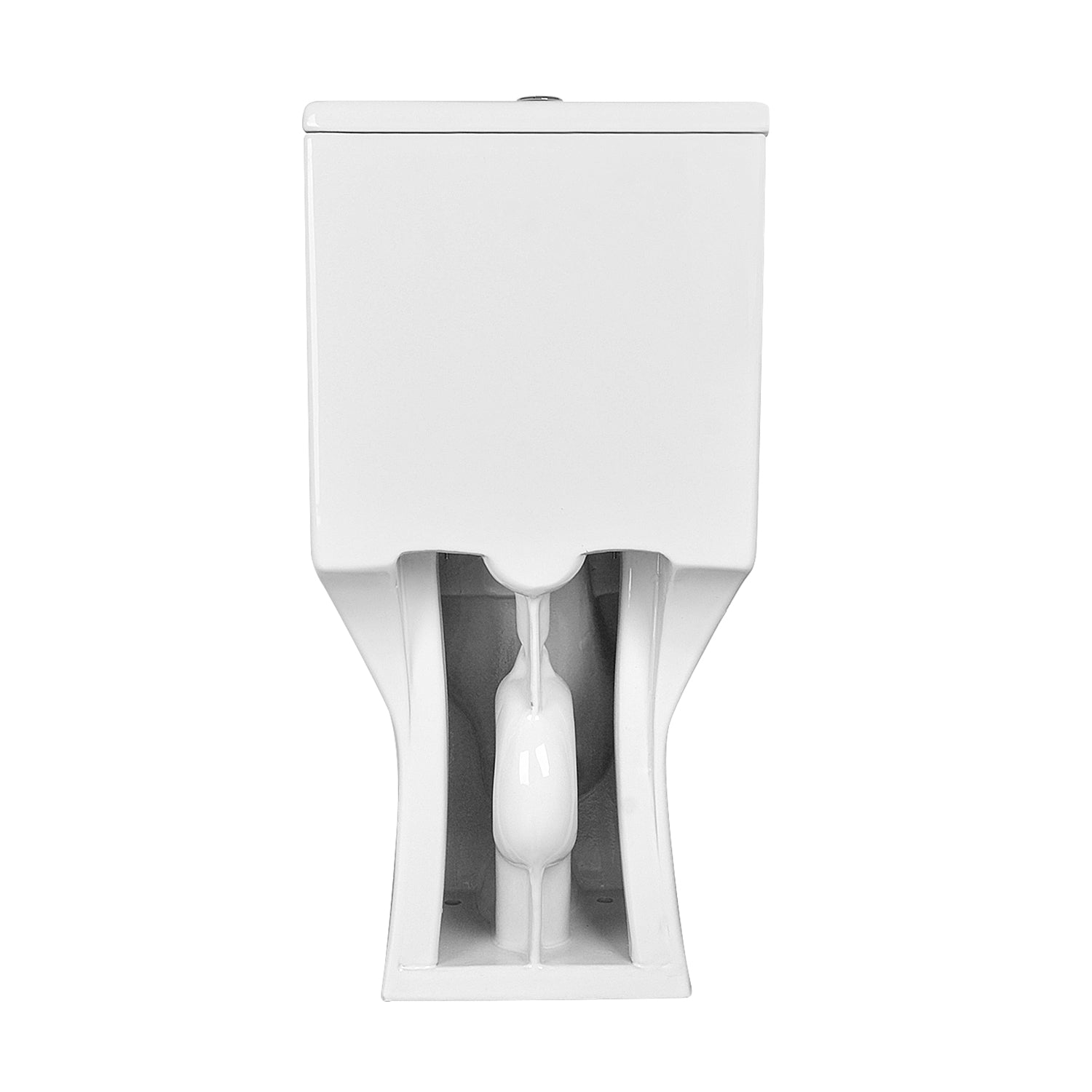

  • Concealed trap way design avoids the accumulation of dust and dirt in curved pipes which is more hygienic and easier to clean.
  • The soft closing seat closes quietly and can be quickly unlatched from the toilet.

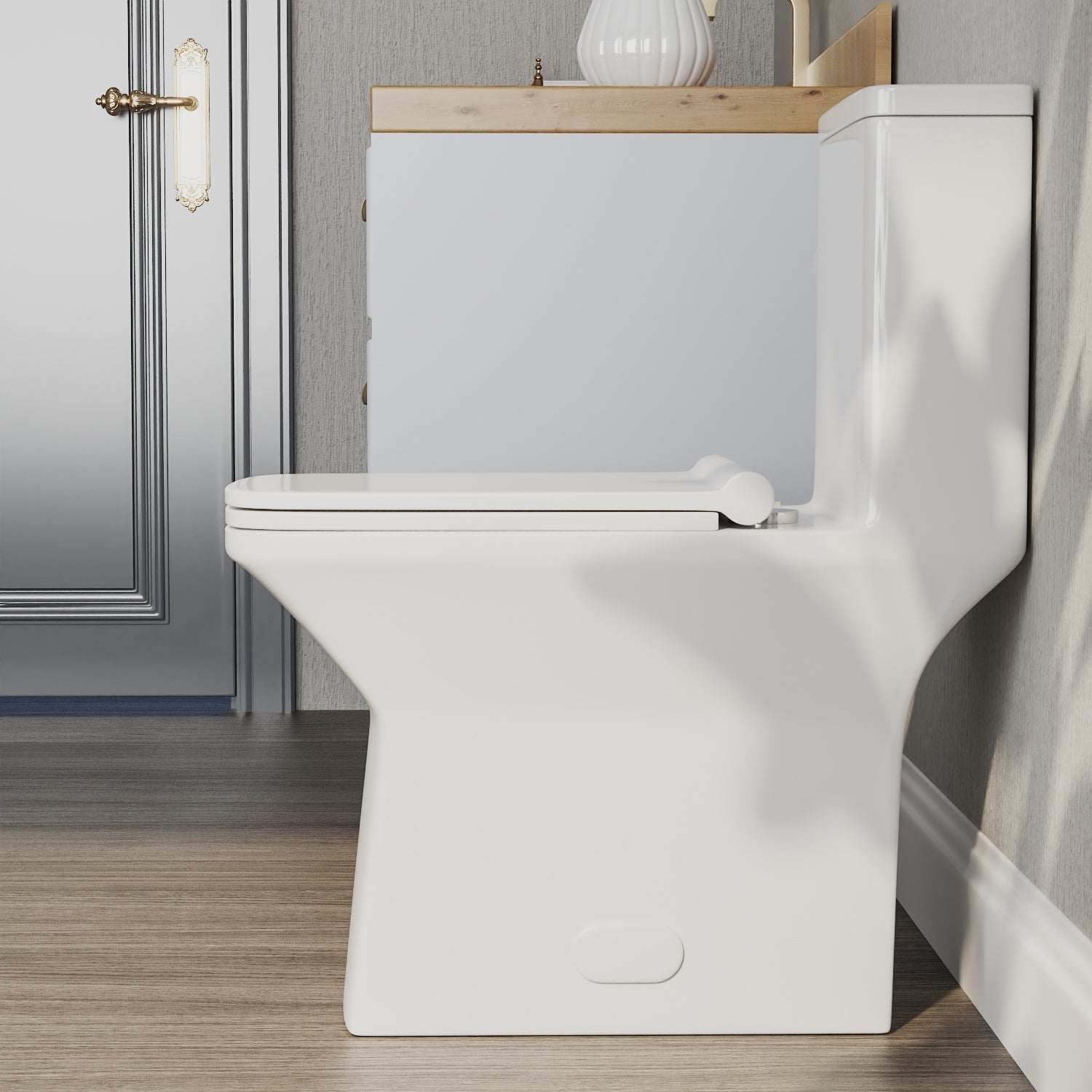

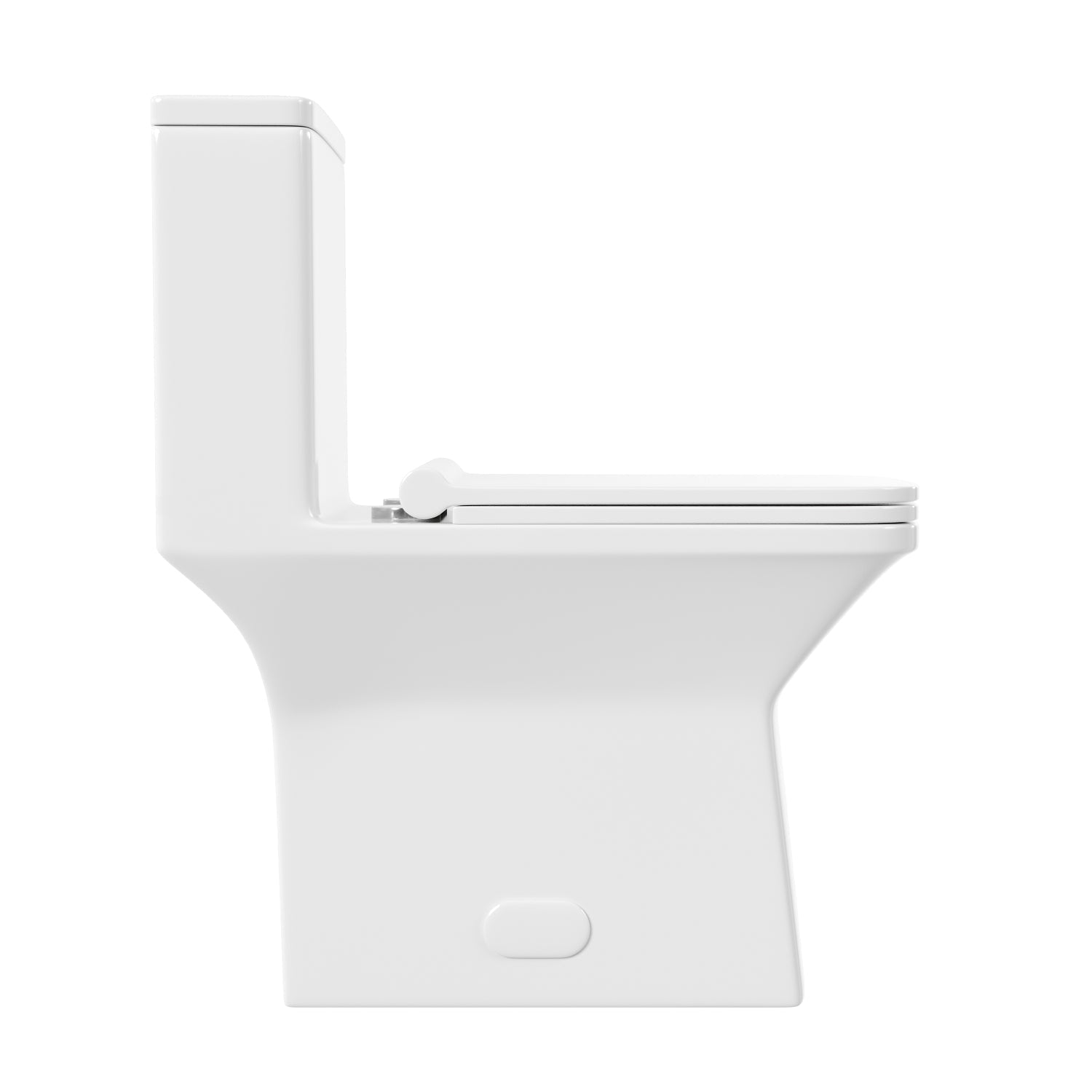

  • A fully skirted tramway is both easy to clean and visually appealing, to be extremely resistant to scratches and stains.
  • This one-piece toilet is friendly-designed and easy to maintain.
  • Professional after-sale service and a one-year warranty.


cUPC: Uniquely blend safety, hygiene, quality, and performance.

  EPA: Seamlessly blend comfort with environmental responsibility, excelling in performance.
   CEC: Certified user experience, energy efficiency, and environmental preservation.

Weights & Dimensions

Overall: 25'' L X 14.17'' W X 30.31'' H
Tank: 12.80'' H X 14.57'' L X 4.92'' W
Tank Lid: 1.02'' H X 14.76'' L X 5.12'' W
Toilet Seat: 1.97 Back/ 0.98 Front '' H X 14.17'' W X 17.72'' L
Toilet Seat Inside Ring: 8.46'' W X 11.81'' L
Bowl: 13.15'' L X10.04'' W
Toilet Seat Height - Top to Bottom: 16.93''
Bowl Height - Top to Bottom: 16.34''
Trap-way Diameter: 2.17''
Rough In Size: 11.61''
Bolts Spread Distance: 5.59''
Distance from the Seat Installation Hole to the Tank: 2.36''
Distance from the Back of the Toilet to the Wall: 3.94''
Toilet Installation Hole Distance: 5.91''
Height from the Bottom of the Water Tank to the Ground: 16.46''
Distance Between the Center of Adapter and the Center of Trap-way: 3.15''
Toilet Base Dimension(Length & Width): 16.54 * 10.71''
Overall Product Weight: 106 lb.
Flush Volume: 1.1/1.6 GPF

What included in the package?

  • Fitting, Toilet Seat, Toilet installation package,Toilet tank side lid, Installation instruction

Compatible Accessories

Fill Valve: DV-F0072V01

Tank Lid: DV-F0072T11

Waxring: DV-F0071P11

Side Bolt Cover: DV-F0071P21

Flush Button: DV-F0071V31

Toilet Seat: DV-F0071S11

Toilet Seat Quick Release Bracket: DV-F0071S01

Toilet Seat Bidet:

DeerValley's Toilet Seat Bidet offers convenience, eco-friendliness, and hygiene with its dedicated feminine wash, self-cleaning, electricity-free operation, and universal toilet compatibility.

Installation Manual:
